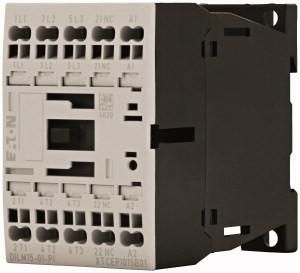

Power contactor for motors, power contactors up to 170 A, 3-pole, utilization category: AC-1: non-inductive or slightly inductive load, resistance furnaces, AC-3: squirrel cage motors: starting, switching off during operation, AC-4: squirrel cage motors: starting, countercurrent braking, reversing, inching, connection technology: push-in terminals, not suitable for motors of efficiency class IE3., number of poles: 3-pole, rated operating current AC-3 380 V 400 V: Ie= 15.5 A, rated operating current AC-1 conventional thermal current, 3-pole, 50 - 60 Hz open at 40 °C: Ith = Ie= 22 A, encapsulated: Ith= 18 A, rated operating current AC-1 conventional thermal current 1-pole open: Ith= 50 A, encapsulated: Ith= 45 A, max. rated operating power three-phase motors 50 - 60 Hz AC-3 220 V 230 V: P= 4 kW, 380 V 400 V: P= 7.5 kW, 660 V 690 V: P= 7 kW, max. rated operating power three-phase motors 50 - 60 Hz AC-4 220 V 230 V: P= 2 kW, 380 V 400 V: P= 3 kW, 660 V 690 V: P= 4.4 kW, can be combined with auxiliary switch: DILM12-XHI.-PI, DILM32-XHI.-PI, DILA-XHI(V).-PI, contact configuration Ö = break contact: 1 Ö, switching elements according to EN 50012., with mirror contact., current type AC/DC: AC operation
| Property | Value |
| Number of normally open contacts as main contacts: | 3 |
| Number of auxiliary contacts as normally closed contacts: | 1 |
| Rated operating power at AC-3, 400 V: | 7.5 kW |
| Rated operating power at AC-4, 400 V: | 3 kW |
| Rated operating current Ie at AC-1, 400 V: | 22 A |
| Rated operating current Ie at AC-3, 400 V: | 15.5 A |
| Rated operating current Ie at AC-4, 400 V: | 7 A |
| Voltage type for actuation: | AC |
| Rated control supply voltage Us at AC 50 Hz: | 220 V |
| Rated control supply voltage Us at AC 60 Hz: | 220 V |
| Type of connection main circuit: | Spring-loaded connection |
| Suitable for series installation: | no |
