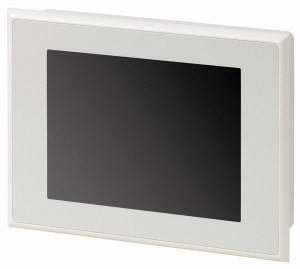

Eaton 199734 XV-102-A3-57TVRB-1E4 control panel

In stock

SKU: 768799

Price on request

€571.95

€0

Overview

Touch display XV-102 for easyE4, color graphic panel, resistive touch, visible image area 115 x 86 mm, 640 x 480 pixels, Ethernet-based communication

Property	Value
Supply voltage for DC:	20.4 to 28.8 V
Protection class (IP), front:	IP65
Usable project memory/user memory:	64000 kByte
Number of HW interfaces Industrial Ethernet:	1
Number of HW interfaces USB:	1
Type of supply voltage:	DC
Display design:	TFT
Screen diagonal:	5.7 inch
With color display:	yes
With alpha keyboard:	yes
With numeric keyboard:	yes
Width of front:	170 mm
Height of front:	130 mm
Installation depth:	34 mm
Operating temperature:	0 to 50 °C
IO-Link Master:	no
Supports protocol for ASI:	no
Supports protocol for SUCONET:	no
Supports protocol for AS-Interface Safety at Work:	no
Supports protocol for Foundation Fieldbus:	no
Mounting rail mounting possible:	no
Supports protocol for Data-Highway:	no
Supports protocol for other bus systems:	no
Supports protocol for PROFINET IO:	no
Supports protocol for PROFIBUS:	no
Supports protocol for DeviceNet Safety:	no
Supports protocol for KNX:	no
Supports protocol for PROFINET CBA:	no
Wall/direct mounting possible:	no
Wireless standard WLAN 802.11:	no
Wireless standard Bluetooth:	no
Supports protocol for CAN:	no
Supports protocol for INTERBUS-Safety:	no
Supports protocol for INTERBUS:	no
Suitable for safety functions:	no
Supports protocol for TCP/IP:	no
Supports protocol for SERCOS:	no
Supports protocol for DeviceNet:	no
Supports protocol for SafetyBUS p:	no
Supports protocol for MODBUS:	no
Supports protocol for PROFIsafe:	no
Supports protocol for EtherNet/IP:	no
Number of colors of the display:	64000
Number of pixels, horizontal:	320
Number of pixels, vertical:	240
With message display:	yes
With message system (incl. Buffer and acknowledgement):	yes
Process value display (output) possible:	no
Process value specification (input) possible:	no
With recipes:	yes
Number of levels, password protection:	200
With printout:	yes
Number of online languages:	100
Additional software components, loadable:	no
With SW interfaces:	yes
Supports protocol for LON:	no
Number of system keys:	1
Wireless standard GPRS:	no
Wireless standard GSM:	no
Wireless standard UMTS:	no
Touch technology:	Resistive touch
NEMA protection class, front:	4X
