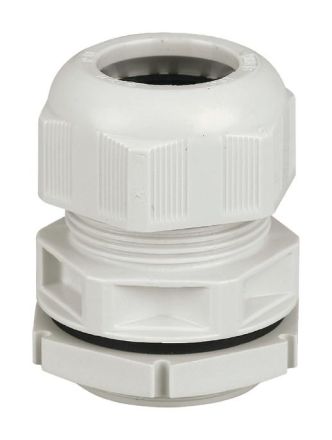

Eaton 206911 V-M25 cable gland

In stock

SKU: 546331

Price on request

€1.76

€0

Overview

Cable gland, cable entry=M25, bore diameter=25.5mm, use cable NYM/NYY, 4-core=H05VV-F5x2.5/5x4, NYM 5x2.5/5x6qmm, protection class IP68 up to 5 bar (30min), polyamide, halogen-free, RAL 7035, with lock nut and integrated strain relief, fire class V2 according to UL94,

Property	Value
Wrench size:	36 mm
Thread pitch:	1.5 mm
Nominal thread size metric/PG:	25
Suitable for cable diameters:	9 to 12 mm
Protection class (IP):	IP68
Operating temperature:	-20 to 120 °C
Halogen-free:	yes
Thread length:	10 mm
Thread type:	metric
Design:	straight
Material:	plastic
With strain relief:	yes
Surface:	untreated
Type of seal:	cut-out sealing ring
Impact-resistant:	yes
Bending protection:	no
RAL number:	7035
Material quality:	polyamide (PA)
Nominal thread size in inches NPT/gas pipe thread:	other
Fiberglass reinforced:	no
With lock nut:	yes
Multiple sealing inserts:	no
Flat cable gland:	no
Dividable gland:	no
Explosion-tested version:	no
For Ex-zone gas:	without
For Ex-zone dust:	without
Snaps into opening:	no
For armored cables:	no
EMC version:	no
Shielded:	no

Characteristics

Impact resistantYes

Explosion-tested versionNo

Nominal thread size metric/PG25

Fiberglass reinforcedNo

ShieldedNo

Suitable for cable diameter9 to 12mm

Wrench size36 mm

HABV-M25

Manufacturer

HAN206911

GTIN4015082069117

VersionStraight

EMC versionNo

Operating temperature-20 to 120 °C

Thread typeMetric

Thread length10 mm

Thread1.5 mm

Halogen freeYes

With strain reliefYes

SurfaceUntreated

RAL number7035

IP protection)IP68

MaterialPlastic

Material qualityPolyamide (PA)
