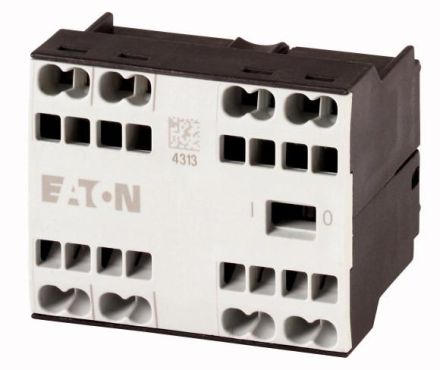

Auxiliary switch module, function: for standard applications, 4-pole, connection technology: spring-loaded terminals, rated operating current AC-15 220 V 230 V 240 V: Ie= 4 A, rated operating current AC-15 380 V 400 V 415 V: Ie= 2 A, rated operating current AC-15 380 V 400 V 500 V: Ie= 1.5 A, contact configuration S = normally open: 1 S, contact configuration SF = early make: 1 SF, contact configuration Ö = normally closed: 1 Ö, contact configuration ÖS = late break: 1 ÖS, mounting type: front mounting, can be used for: DILE (E) M-10-C (-G) (.) , DILE (E) M-01-C (-G) (.) , DILER40 (-G) -C, DILER31 (-G) -C, DILER22-C, Notes: Auxiliary opener can be used as a mirror contact according to IEC/EN 60947-4-1 Annex F (not late opener), Identification number/design of the combinations Identification number: 62, 53, 44
