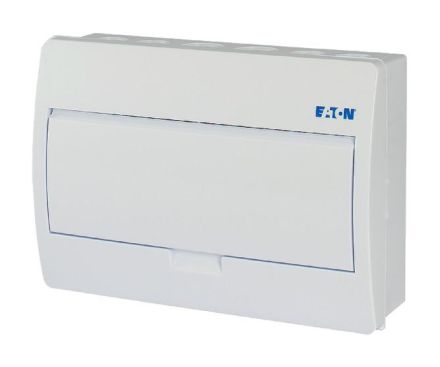

Eaton 281691 BC-O-1/12-TW-ECO 1 row 12TE IP40 surface-mounted small distribution board

In stock
SKU: 512341
€32.42
Into a basketIn the basketGo

Overview

ECO small distribution board, surface-mounted, white RAL9003, protection class IP40 according to IEC/EN 62208, 12 modular units, 1-row, protection class 2 totally insulated, approved for the construction of installation distribution boards according to IEC/EN 61439-30660-600-3, housing made entirely of ABS, for the installation of switching and protective devices according to dimensional standard DIN 43 880 with 70 mm installation depth, AC 400 V, RoHs-compliant, consisting of a plastic base with top-hat rail made of galvanized sheet steel, finger-safe neutral and protective conductor terminal IP2X, pre-knockout for metric cable entries at the top and bottom, upper part with 46 mm device opening, white flap flush with the front with locking in the open position, upper part of the housing with screw caps, upper part can be sealed with lower part, including labeling strip.

PropertyValue
Width in division units:12
Number of rows:1
Height:130 mm
Width:220 mm
Depth:310 mm
Protection class (IP):IP40
Color:white
Mounting type:Surface-mounted
With lock:no
Transparent cover/door:no
Housing material:Plastic
RAL number:9003
DIN rail:yes
Mounting option:no
Installation depth:70 mm
EMC version:no
With mounting plate:no
Type of cover:door
Cover design:closed
Inner depth:90 mm
Type of Closure:other

Characteristics

HABBC-O-1/12-TW-ECO 1 row 12HP IP40
ManufacturerEaton
HAN281691
GTIN4015082816919
Cultivation optionNo
Number of rows1
Type of coverDoor
Type of closureOther
Cover designClosed
Width220 mm
Width in pitch units12
DIN railYes
EMC versionNo
Installation depth70 mm
ColorWhite
Height130 mm
Internal depth90 mm
With mounting plateNo
With lockNo
Mounting typeSurface-mounted
RAL number9003
IP protection)IP40
Depth310 mm
Transparent lid/doorNo
Housing materialPlastic
Eaton 281691 BC-O-1/12-TW-ECO 1 row 12TE IP40 surface-mounted small distribution board
Eaton 281691 BC-O-1/12-TW-ECO 1 row 12TE IP40 surface-mounted small distribution board
€32.42
