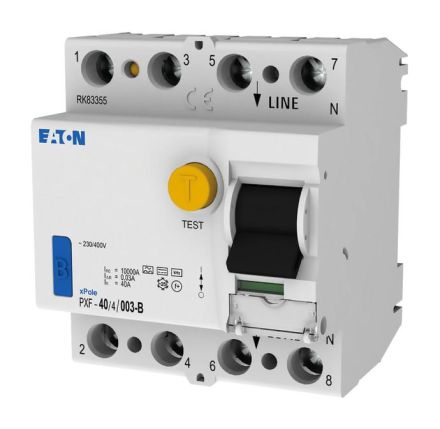

Eaton 300299 PXF-40/4/003-B all-current sensitive residual current circuit breaker

Eaton 300299 PXF-40/4/003-B all-current sensitive residual current circuit breaker

In stock

SKU: 512329

Price on request

€375.20

€0

Into a basketIn the basketGo

Overview

Residual current circuit breaker PXF, 4-pole, rated current In: 40 A, rated short-circuit strength Icn: 10 kA, rated residual current IN: 0.03 A, switching devices for residential and commercial buildings

Property	Value
Rated voltage:	400 V
Rated current:	40 A
Rated residual current:	0.03 mA
Mounting type:	DIN rail
Protection class (IP):	IP20
Frequency:	50 Hz
Number of poles:	4
Width in pitch units:	4
Selective type:	no
Residual current type:	B
Additional equipment possible:	yes
Installation depth:	70.5 mm
Short-circuit strength (Icw):	10 kA
Surge current strength:	0.25 kA
Short-time delayed type:	no
Rated insulation voltage Ui:	440 V
Rated impulse withstand voltage Uimp:	4 kV
With locking device:	yes
Ambient temperature during Operating:	-25 to 50 °C
Pollution level:	2
Connectable conductor cross-section, stranded:	1.5 to 16 mm²
Connectable conductor cross-section, single-wire:	1.5 to 35 mm²

Characteristics

HABPXF-40/4/003-B AC/DC sensitive

Manufacturer

HAN300299

GTIN9010238110557

Connectable conductor cross-section solid1.5 to 35 mm²

Connectable conductor cross-section stranded1.5 to 16 mm²

Rated residual current0.03mA

Rated insulation voltage Ui440V

Rated voltage400V

Rated impulse withstand voltage Uimp4kV

Rated current40A

Width in pitch units4

Installation depth70.5 mm

Residual current typeB

Frequency50Hz

Short circuit strength (Icw)10kA

Short-time delayed typeNo

With locking deviceYes

Mounting typeDIN rail

Number of poles4

IP protection)IP20

Selective typeNo

Surge current strength0.25kA

Ambient temperature during operation-25 to 50 °C

Degree of contamination2

Additional equipment possibleYes
