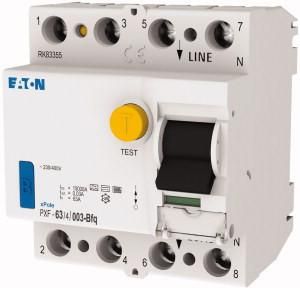

Eaton 300980 PXF-63/4/003-Bfq alls.63A 4-pole 30mA residual current device

Eaton 300980 PXF-63/4/003-Bfq alls.63A 4-pole 30mA residual current device

In stock

SKU: 714930

Price on request

€608.97

€0

Into a basketIn the basketGo

Overview

Residual current circuit breaker PXF, 4-pole, rated current In: 63 A, rated short-circuit strength Icn: 10 kA, rated residual current IN: 0.03 A, switching devices for residential and commercial buildings

Property	Value
Rated voltage:	400 V
Rated current:	63 A
Rated residual current:	0.03 mA
Mounting type:	DIN rail
Protection class (IP):	IP20
Frequency:	50 Hz
Number of poles:	4
Width in pitch units:	4
Selective type:	no
Residual current type:	B
Additional equipment possible:	yes
Installation depth:	70.5 mm
Short-circuit strength (Icw):	10 kA
Surge current strength:	0.25 kA
Short-time delayed type:	no
Rated insulation voltage Ui:	440 V
Rated impulse withstand voltage Uimp:	4 kV
With locking device:	yes
Ambient temperature during Operating:	-25 to 50 °C
Pollution level:	2
Connectable conductor cross-section, stranded:	1.5 to 16 mm²
Connectable conductor cross-section, single-wire:	1.5 to 35 mm²

Characteristics

HABPXF-63/4/003-Bfq alls.63A 4-pin 30mA

Manufacturer

HAN300980

GTIN9010238138131

Connectable conductor cross-section solid1.5 to 35 mm²

Connectable conductor cross-section stranded1.5 to 16 mm²

Rated residual current0.03mA

Rated insulation voltage Ui440V

Rated voltage400V

Rated impulse withstand voltage Uimp4kV

Rated current63 A

Width in pitch units4

Installation depth70.5 mm

Residual current typeB

Frequency50Hz

Short circuit strength (Icw)10kA

Short-time delayed typeNo

With locking deviceYes

Mounting typeDIN rail

Number of poles4

IP protection)IP20

Selective typeNo

Surge current strength0.25kA

Ambient temperature during operation-25 to 50 °C

Degree of contamination2

Additional equipment possibleYes

Eaton 300980 PXF-63/4/003-Bfq alls.63A 4-pole 30mA residual current device

Eaton 300980 PXF-63/4/003-Bfq alls.63A 4-pole 30mA residual current device

Price on request

€608.97

€0

Into a basketIn the basketGo
