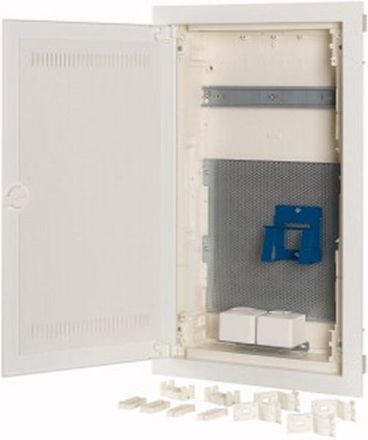

Eaton 302543 KLV-36UPM-WF flush-mounted small distribution board

In stock
SKU: 880007
€262.74
Into a basketIn the basketGo

Overview

Flush-mounted multimedia distributor KLV, plastic distributor with sheet steel door with ventilation openings, marking slots in the wall box, flat door frame design, stable door lock optionally replaceable with safety lock, cable holder for tidy cable routing, extensive range of accessories, scope of delivery: housing, 1x mounting rail, micro-perforated mounting plate, 1x device holder, 2x single sockets and Euro2 adapter, spirit level for alignment, 3D plaster compensation with up to 18mm depth compensation, cable holder, nail tabs, assembly instructions, practical special packaging. Standards: Approved for multimedia applications in the GP universal housing in accordance with IEC/EN 60670-24 and IEC/EN 62208. Protection class II. To achieve SKII, all devices must be installed in a protectively insulated version.

PropertyValue
LSA:no
Version:Wall distributor
Mounting type:Flush-mounted
Mounting dimensions (standardized):other
Color:white
Height:590 mm
Width:360 mm
Depth:100 mm
With connection strips:no
110-compatible:no
Material:sheet steel/plastic
Protection class (IP):IP30
SID:no
Protection class (NEMA):other
Number of installable terminal blocks:12

Characteristics

HABKLV-36UPM-WF
ManufacturerEaton
HAN302543
GTIN9010238161986
VersionWall distributor
Width360 mm
ColorWhite
Height590 mm
Mounting typeFlush-mounted
IP protection)IP30
Protection class (NEMA)Other
Depth100 mm
MaterialSheet steel/plastic
