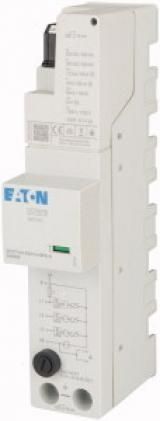

Eaton 304960 SPZT123-300/3+NPE-H f.40mm busbar combined arrester

In stock
SKU: 807355
€460.51
Into a basketIn the basketGo

Overview

For protecting consumer systems in the mains-side connection compartment of the meter cabinet on a 40mm busbar against transient overvoltages caused by direct and indirect lightning strikes, as well as switching operations. Meets all requirements for the installation of overvoltage protection according to DIN0100-534, test classes I, II, III according to IEC 61643-1, SPD type T1+2+3, compliant with IEC 61643-11: 2011, EN 61643-11: 2012+A11: 2018, lightning protection class III and IV according to IEC 62305, leakage current-free, with integrated fuse to protect the SmartMeterGateway and the APZ

PropertyValue
Maximum continuous voltage AC:300 V
Lightning impulse current (10/350 µs):12.5 kA
Protection level:1500 kV
Test class:Type 1 and 2
Number of poles:4
Nominal voltage AC:240 V
Size:3 TE
Remote signaling:no
Signaling on the device:optical
Network type TN-CS:no
Network type DC:no
Network type TN:yes
Energetically coordinated protective effect to the end device:yes
Mounting type:Busbar
Protection level N-PE:1500 kV
Network type TT:yes
Specific energy (W/R):39 kJ/Ohm
Integrated backup fuse:no
Follow current extinguishing capacity:0.1 kA
Max. conductor cross-section rigid (single/multi-wire):35 mm²
Max. Conductor cross-section flexible (fine-stranded):25 mm²
Network type other:no
Protection level LN:1500 kV
Network type TN-C:no
Network type IT:no
Network type TN-S:yes
Protection class (IP):IP20

Characteristics

Max. conductor cross-section rigid (single/multi-wire)35 mm²
Max. conductor cross-section flexible (fine-stranded)25 mm²
Lightning surge current (10/350 µs)12.5 kA
Protection level1500 kV
Network form TTYes
Network type TN-SYes
Network form TNYes
Network type TN-CNo
Network type TN-C-SNo
Protection level L-N1500 kV
Network type DCNo
Protection level N-PE1500 kV
Integrated backup fuseNo
Network type ITNo
HABSPZT123-300/3+NPE-H f.40mm busbar
ManufacturerEaton
HAN304960
GTIN9010238204423
Size3 HP
Highest continuous voltage AC300V
Mounting typeBusbar
Nominal voltage AC240V
Number of poles4
IP protection)IP20
Signaling on the deviceOptical
Eaton 304960 SPZT123-300/3+NPE-H f.40mm busbar combined arrester
