Eaton AKS1000 Platz4 holder, 107208

In stock

SKU: 476045

Price on request

€75.20

€0

Overview

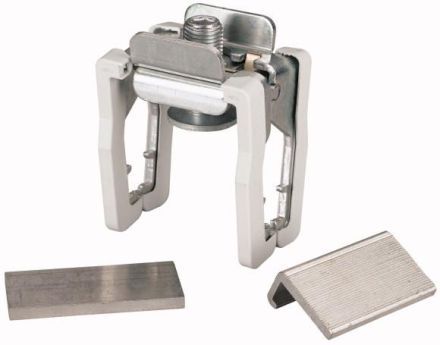

Spread terminal, for SASY60i and SASY185i, terminal space=55x28mm, for busbars 20x5/10 to 30x10mm, double-T profile and triple-T profile, width=72mm, Ie=1600A, connection cross-sections=2x 10x50x1 or 2x 50x10,

Property	Value
Busbar width:	20 to 30 mm
Busbar thickness:	5 to 10 mm
Max. conductor cross-section:	1000 mm²
Max. Rated operating current Ie:	1600 A
Suitable for:	Flat bar
Suitable for sector conductor connection:	yes
Suitable for strip conductor connection:	yes
Width of terminal:	72 mm
Suitable for round conductor connection:	yes
