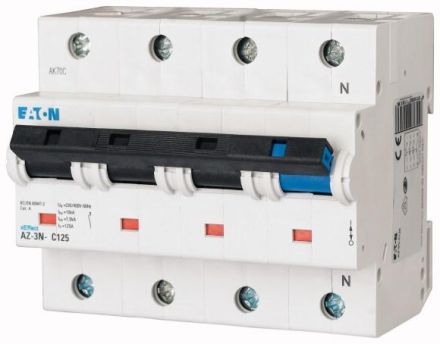

Eaton AZ-3N-C125 C125A 3-pole+N high-performance circuit breaker, 211813

Eaton AZ-3N-C125 C125A 3-pole+N high-performance circuit breaker, 211813

In stock

SKU: 476605

Price on request

€440.31

€0

Overview

Circuit breaker AZ, 3-pole+N, tripping characteristic: C, rated current In: 125 A, switching devices for industrial applications and high-end commercial buildings

Property	Value
Tripping characteristic:	C
Rated current:	125 A
Rated voltage:	400 V
Type of voltage:	AC
Frequency:	50 to 60 Hz
Width in pitch units:	6
Number of poles (total):	4
Energy limitation class:	3
Additional equipment possible:	yes
Overvoltage category:	3
Installation depth:	75 mm
Protection class (IP):	IP20
Rated switching capacity Icu according to IEC 60947-2 at 230 V:	15 kA
Rated switching capacity Icu according to IEC 60947-2 at 400 V:	15 kA
Pollution level:	2
Switching neutral conductor:	yes
Number of protected poles:	3
Rated insulation voltage Ui:	440 V
Rated impulse withstand voltage Uimp:	4 kV
Ambient temperature during operation:	-25 to 55 °C
Connectable conductor cross-section, stranded:	2.5 to 50 mm²
Connectable conductor cross-section, solid:	2.5 to 50 mm²
