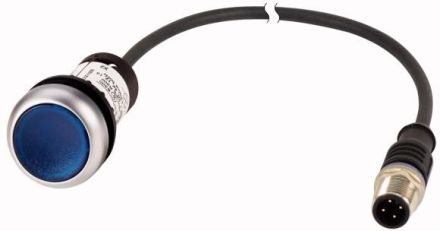

Eaton C22-DL-B-K10-24-P1 blue illuminated pushbutton, 185553

In stock
SKU: 479383
€39.26
Into a basketIn the basketGo

Overview

Illuminated pushbutton, RMQ compact solution, complete device, design: flat, momentary, connection type: cable (black) with M12A connector, 4-pin, cable length: 0.2 m, LED color: blue, button plate: blue, button plate unlabeled, rated operating voltage LED: 24 V AC/DC, labeling: without, protection class: IP66, IP67, IP69K (front), IP65 (rear), front ring titanium, connection to SmartWire-DT: no, S = normally open: 1 S, standards and regulations: IEC/EN 60947-5-1,0660

PropertyValue
Number of contacts as normally open:1
Momentary:yes
Switching function latching:no
Suitable for lighting:yes
Design of the lens:round
Color of the button:blue
Number of command points:1
Supply voltage of the lamp:24 V
Hole diameter:22.5 mm
Design of the Button:flat
Protection class (IP):IP67/IP69K
With front ring:yes
Design of the electrical connection:other
Material of the front ring:plastic
Protection class (NEMA):12

Characteristics

HABC22-DL-B-K10-24-P1 blue
ManufacturerEaton
HAN185553
GTIN4015081810475
Number of command posts1
Number of contacts as normally open1
Design of the electrical connectionOther
Lens designAround
Button designFlat
Button colorBlue
Suitable for lightingYes
Hole diameter22.5 mm
With front ringYes
Switching function latchingNo
IP protection)IP67/IP69K
Protection class (NEMA)12
GropingYes
Front ring materialPlastic
