Catalog

Eaton C22-DR-G-K10-P62 green push button, 185607

In stock
SKU: 479400
€39.19
Into a basketIn the basketGo

Overview

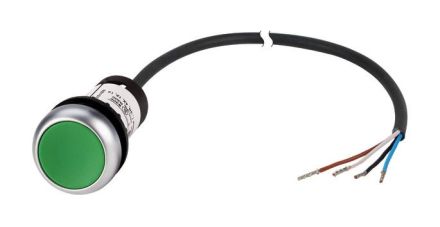

Push button, RMQ compact solution, complete device, design: flat, latching, connection type: cable (black) with open end, 4-pin, cable length: 1 m, button plate: green, button plate unlabeled, labeling: without, protection class: IP66, IP67, IP69K (front), IP65 (rear), front ring titanium, connection to SmartWire-DT: no, S = normally open: 1 S, standards and regulations: IEC/EN 60947-5-1,0660

PropertyValue
Number of contacts as normally open:1
Momentary:no
Switching function latching:yes
Suitable for lighting:no
Design of the lens:round
Color of the button:green
Number of command points:1
Hole diameter:22.5 mm
Design of the button:flat
Protection class (IP):IP67/IP69K
With front ring:yes
Front ring material:plastic
Protection class (NEMA):12

Characteristics

HABC22-DR-G-K10-P62 green
ManufacturerEaton
HAN185607
GTIN4015081811014
Number of command posts1
Number of contacts as normally open1
Lens designAround
Button designFlat
Button colorGreen
Suitable for lightingNo
Hole diameter22.5 mm
With front ringYes
Switching function latchingYes
IP protection)IP67/IP69K
Protection class (NEMA)12
GropingNo
Front ring materialPlastic
Eaton C22-DR-G-K10-P62 green push button, 185607
Eaton C22-DR-G-K10-P62 green push button, 185607
€39.19
Into a basketIn the basketGo
