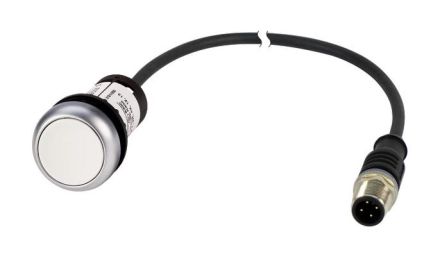

Eaton C22-DR-W-K10-P1 white push button, 185686

In stock
SKU: 479410
€37.35
Into a basketIn the basketGo

Overview

Push button, RMQ compact solution, complete device, design: flat, latching, connection type: cable (black) with M12A connector, 4-pin, cable length: 0.2 m, button plate: white, button plate unlabeled, labeling: without, protection class: IP66, IP67, IP69K (front), IP65 (rear), front ring titanium, connection to SmartWire-DT: no, S = normally open: 1 S, standards and regulations: IEC/EN 60947-5-1,0660

PropertyValue
Number of contacts as normally open:1
Momentary:no
Switching function latching:yes
Suitable for lighting:no
Design of the lens:round
Color of the button:white
Number of command points:1
Hole diameter:22.5 mm
Design of the button:flat
Protection class (IP):IP67/IP69K
With front ring:yes
Design of the electrical connection:other
Material of the front ring:plastic
Protection class (NEMA):12

Characteristics

HABC22-DR-W-K10-P1 white
ManufacturerEaton
HAN185686
GTIN4015081811809
Number of command posts1
Number of contacts as normally open1
Design of the electrical connectionOther
Lens designAround
Button designFlat
Button colorWhite
Suitable for lightingNo
Hole diameter22.5 mm
With front ringYes
Switching function latchingYes
IP protection)IP67/IP69K
Protection class (NEMA)12
GropingNo
Front ring materialPlastic
Eaton C22-DR-W-K10-P1 white push button, 185686
Eaton C22-DR-W-K10-P1 white push button, 185686
€37.35
Into a basketIn the basketGo
