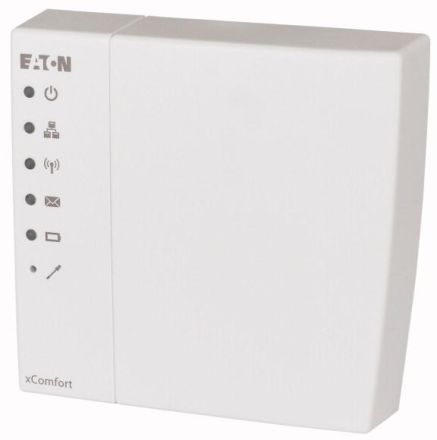

Eaton CHCA-00/01 Smart Home Controller, 171230

In stock
SKU: 217632
€459.22
Into a basketIn the basketGo

Overview

The zSmart Home Controllerz is the most innovative product in the xComfort series, which enables the functions of a modern electrical installation, such as central display and operation, lighting, shading, energy monitoring, temperature control, scenarios, IP cameras, macros, etc. The Smart Home Controller must be connected to a (WLAN) router using a LAN cable. Depending on the existing network, the Smart Home Controller and the xComfort system can be accessed either zlocally via WLAN or zremotely via the Internet using a smartphone, smart TV (full browser), PC, laptop, tablet, etc. An iOS APP (iPhone, iPad, iPod), an Android APP (smart phone, tablets) and a web browser (mobile devices, desktop, PC, laptop, ...) are available for intuitive control, operation and display of the system. Various status LEDs on the device provide information about the function and status of the device, the system or the communication connection. For configuration, you need Eaton RF software 2.19 or higher and a web browser for the configuration web interface integrated in the Smart Home Controller. After a basic configuration, the display and user interface for the apps and the web browser are automatically generated. Installation is carried out surface-mounted on the wall or on a 55 mm or 68 mm switch, junction or installation box. The device can also be used as a free-standing device using the device feet included in the scope of delivery. Remote notification when certain events occur can be set via email or via the fee-based Clickatell SMS service. The device is powered by a plug-in power supply unit included in the scope of delivery. A LAN network cable is also included in the scope of delivery.

PropertyValue
KNX bus system:no
Radio bus system:yes
Powernet bus system:no
LON bus system:no
Other bus systems:without
Mounting type:Surface-mounted
With display:no
GSM modem integrated:no
DCF clock integrated:yes
Rated voltage:5 V
Number of integrated input channels:1
Number of integrated output channels:1
KNX radio bus system:no

Characteristics

HABCHCA-00/01
ManufacturerEaton
HAN171230
GTIN4015081677191
Other bus systemsWithout
Rated voltage5V
Bus system radio busYes
KNX bus systemNo
KNX radio bus systemNo
LON bus systemNo
Powernet bus systemNo
With displayNo
Mounting typeSurface-mounted
