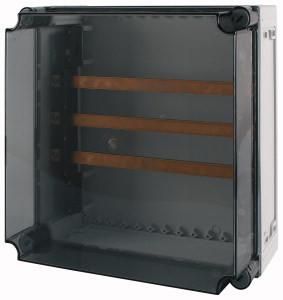

Eaton CI44-S60-630/3 3-pole 630A busbar enclosure, 194567

In stock
SKU: 479969
€335.48
Into a basketIn the basketGo

Overview

Busbar housing with transparent cover, 3-pole, 630 A, carrier included for N+PE for retrofitting, with CU rails L1/L2/L3: 30 x 10 mm, N: without, PE: without, without terminals, for individual assembly.

PropertyValue
Height:375 mm
Width:375 mm
Depth:225 mm
Number of poles:3
Rated current of rail system:630 A
Short-circuit strength (Icw):38 kA
Protection class (IP):IP65
Equipped with busbar:yes
Mounting option:yes
With transparent Cover:yes
Housing material:plastic
Mounting type:surface-mounted
Protection class (NEMA):other

Characteristics

HABCI44-S60-630/3 3-pole 630A
ManufacturerEaton
HAN194567
GTIN9010238058699
Cultivation optionYes
Width375 mm
Height375 mm
Short circuit strength (Icw)38kA
Mounting typeSurface-mounted
Number of poles3
IP protection)IP65
Protection class (NEMA)Other
Depth225 mm
Housing materialPlastic
