Eaton CI44-S60-630/3-8D02-LTS HS 630A 3-pole distribution housing, 194602

In stock
SKU: 479890
€939.56
Into a basketIn the basketGo

Overview

D02 distribution housing with transparent cover, 8x D02 load-break switches on busbar system 630A, 3-pole, carrier included for N+PE for retrofitting, with CU rails L1/L2/L3: 30 x 10 mm, N: without, PE: without, without terminals, fuse device with drawers and flashing function, without fuses.

PropertyValue

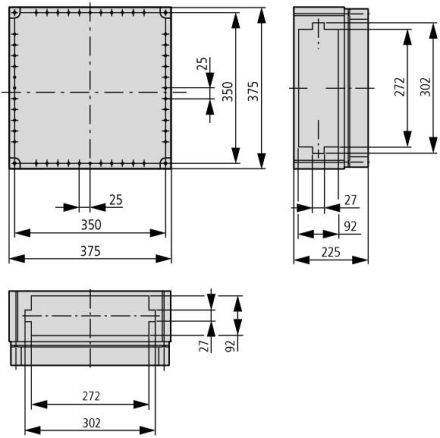

Housing height:375 mm
Rated operating current Ie:50 A
Size of the fuse links:D02
Rated insulation voltage Ui:800 V
Degree of protection (IP):other
Equipment of the fuse switch housing:with fuse switch disconnector
Number of poles:3
With fuse monitoring:yes
Max. Rated operating voltage Ue at AC:400 V
Protection class (NEMA):other

Characteristics

Rated operating current Ie50 A
HABCI44-S60-630/3-8D02-LTS HS 630A 3-pole
ManufacturerEaton
HAN194602
GTIN9010238059047
Rated insulation voltage Ui800V
Max. rated operating voltage Ue at AC400V
With fuse monitoringYes
Number of poles3
IP protection)Other
Protection class (NEMA)Other
Eaton CI44-S60-630/3-8D02-LTS HS 630A 3-pole distribution housing, 194602
Eaton CI44-S60-630/3-8D02-LTS HS 630A 3-pole distribution housing, 194602
