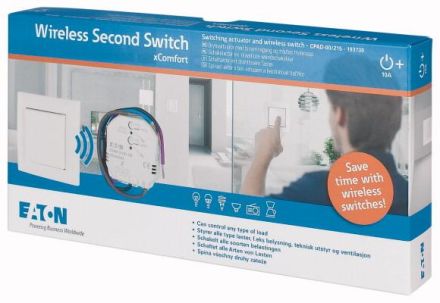

Eaton CPAD-00/215 Wireless Second Switch Package , 193730

In stock

SKU: 479879

Price on request

€140.55

€0

Overview

Pre-configured wireless switch package to extend a traditional switch with a second wireless switch. Switches all types of loads. Hybrid switching technology (long life). Easy installation without major construction work. Wireless push button anywhere you like. Compatible with universal 55mm switchgear.

Property	Value
Width in modular spaces:	3
Max. number of switching outputs:	1
Mounting type:	Flush-mounted
Protection class (IP):	IP20
Max. switching capacity:	2300 W
KNX bus system:	no
Max. Switching current:	10 A
Bus system radio bus:	yes
Bus system Powernet:	no
With bus connection:	yes
Bus system LON:	no
Other bus systems:	other
On-site/manual operation:	yes
With LED display:	yes
Suitable for C load:	yes
Rated current:	10 A
Rated operating voltage:	196 to 253 V
Different phases can be connected:	no
Modular expansion option:	yes
KNX radio bus system:	no
Bidirectional radio:	yes
Removable bus module:	no
Output power:	2300 W
Min. depth of device box:	18 mm
