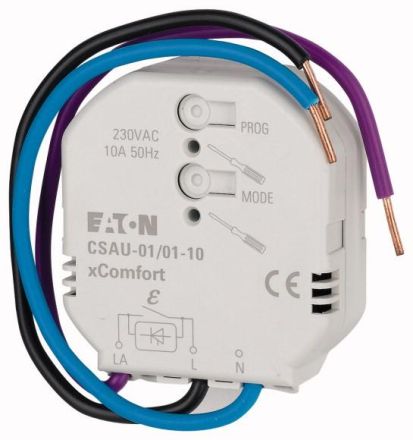

Eaton CSAU-01/01-10 switching device 10A, 172937

In stock
SKU: 217726
€96.42
Into a basketIn the basketGo

Overview

Small-format switching actuator 230VAC/10A. Easy to use with existing wall switches, control lights in stairwells and corridors, direct light switching with motion sensors and twilight switches. Compact design for installation behind switches, buttons, motion sensors, wall sockets or in distribution boxes. Suitable for high switching capacity to switch a variety of loads such as lighting, ventilation, heating, etc.

PropertyValue
Width in modular spaces:3
Max. number of switching outputs:1
Mounting type:Flush-mounted
Protection class (IP):IP20
Max. switching capacity:2300 W
KNX bus system:no
Max. Switching current:10 A
Bus system radio bus:yes
Bus system Powernet:no
With bus connection:yes
Bus system LON:no
Other bus systems:xComfort
On-site/manual operation:yes
With LED display:yes
Suitable for C load:yes
Rated current:10 A
Rated operating voltage:230 V
Different phases can be connected:no
Modular expansion option:no
KNX radio bus system:no
Bidirectional radio:yes
Removable bus module:yes
Output power:2300 W
Min. depth of device box:18 mm

Characteristics

Output power2300 W
HABCSAU-01/01-10
ManufacturerEaton
HAN172937
GTIN4015081695256
Other bus systemsXComfort
Rated operating voltage230V
Rated current10A
Width in pitch units3
Bus system radio busYes
KNX bus systemNo
KNX radio bus systemNo
LON bus systemNo
Powernet bus systemNo
Radio bidirectionalYes
Suitable for C-loadYes
Max. switching capacity2300W
Min. depth of the device box18 mm
With bus connectionYes
With LED displayYes
Mounting typeFlush-mounted
IP protection)IP20
