Eaton CSAU-01/01-16IE switching device 16A with input, power measurement, 172942

In stock

SKU: 217731

Price on request

€140.89

€0

Overview

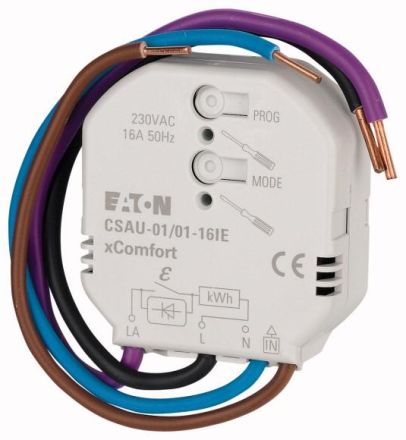

Switching device 16A with input, power measurement

Eaton Type: CSAU-01/01-16IE
Eaton Article No.: 172942

Property	Value
Width in modular spaces:	3
Max. number of switching outputs:	1
Mounting type:	Flush-mounted
Protection class (IP):	IP20
Max. switching capacity:	3680 W
Number of digital inputs:	1
KNX bus system:	no
Max. Switching current:	16 A
Bus system radio bus:	yes
Bus system Powernet:	no
With bus connection:	yes
Bus system LON:	no
Other bus systems:	xComfort
On-site/manual operation:	yes
With LED display:	yes
Suitable for C load:	yes
Rated current:	16 A
Rated operating voltage:	230 V
Different phases can be connected:	no
Modular expansion option:	no
KNX-RF bus system (radio):	no
Bidirectional radio:	yes
Removable bus module:	yes
Output power:	3680 W
Min. depth of device box:	18 mm
