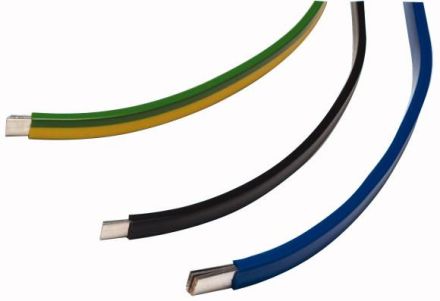

Insulated copper tape, laminated conductor E-Cu, tinned, UL-approved up to max. 600VAC, insulating material heat-resistant up to +105 °C, dimensions (number of layers x width x thickness) = 6x9x0.8mm, color black, rated operating current Ie = 160 A, self-extinguishing according to UL 94 V0, dielectric strength according to IEC 60243-1 20 kV/mm, rated voltage Ue = 690VAC,
