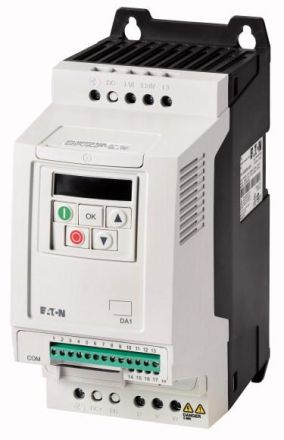

Eaton DA1-345D8FB-A20C frequency converter, 169051

Frequency converter, type code: DA1, rated operating voltage: Ue = 400 V AC, 3-phase, 480 V AC, 3-phase, output voltage at Ue: U2 = 400 V AC, 3-phase, 480 V AC, 3-phase, mains voltage (50/60Hz): ULN = 380 (-10%) - 480 (+10%) V, rated operating current at 150% overload: Ie = 5.8 A, note: rated operating current at a switching frequency of 8 kHz and an ambient temperature of +50 °C, note: overload cycle for 60 s every 600 s, assigned motor power note: for normal four-pole, internally and externally ventilated three-phase asynchronous motors with 1500 min-1 at 50 Hz or 1800 min-1 at 60 Hz, overload cycle for 60 s every 600 s, at 400 V, 50 Hz, assigned motor power 150% overload: P = 2.2 kW, 150% overload: IM = 5 A, assigned motor power note: at 440 - 480 V, 60 Hz, assigned motor power 150% overload: P = 3 HP, assigned motor power 150% overload: IM = 4.8 A, protection class: IP20/NEMA 0, interface/fieldbus (built-in): OP-Bus (RS485) /Modbus RTU, CANopen®, fieldbus connection (optional): Ethernet IP, DeviceNet, PROFIBUS, PROFINET, Modbus-TCP, EtherCAT, SmartWire-DT, equipment: radio interference filter, brake chopper, additional circuit board protection, 7-segment display, size: FS2, Standards and regulations: General requirements: IEC/EN 61800-2, EMC requirements: IEC/EN 61800-3, Safety requirements: IEC/EN 61800-5-1
