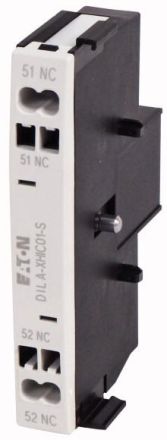

Eaton DILA-XHIC01-S 1NC side mounting auxiliary switch, 115951

In stock
SKU: 474137
€15.04
Into a basketIn the basketGo

Overview

Auxiliary switch module, with positively guided contacts, switching elements in accordance with EN 50005, combinations of version E correspond to EN 50011 and are to be preferred., DC-operated contactors DILA (C) -22 may only be combined with 2-pole auxiliary switches., Function: for standard applications, 1-pole, Connection technology: spring-loaded terminals, Rated operating current AC-15 220 V 230 V 240 V: Ie= 4 A, Rated operating current AC-15 380 V 400 V 415 V: Ie= 4 A, Contact configuration N/C = normally closed: 1 N/C, Mounting type: side mounting, can be used for: DILMC7., DILMC9., DILMC12., DILMC15., DILAC., Design: side auxiliary switches, Notes: Positively guided contacts, in accordance with IEC/EN 60947-5-1 Appendix L, within the auxiliary switch modules and for the integrated auxiliary switches of the DILM 7 - DILM32, auxiliary break contact can be used as a mirror contact according to IEC/EN 60947-4-1 Appendix F (not late break contact)

PropertyValue
Number of contacts as normally closed:1
Mounting type:Side mounting
Type of electrical connection:Spring-loaded connection
Design:Plug-in
Rated operating current Ie at AC-15, 230 V:4 A
Socket:without

Characteristics

HABDILA-XHIC01-S 1Ö side mounting
ManufacturerEaton
HAN115951
GTIN4015081156917
Number of contacts as opener1
VersionAttachable
Design of the electrical connectionSpring-loaded connection
Rated operating current Ie at AC-15, 230 V4 A
VersionWithout
Mounting typeSide attachment
