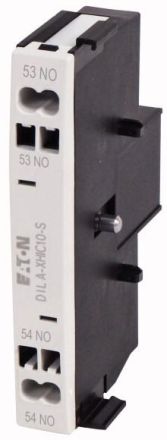

Auxiliary switch module, with positively guided contacts, switching elements in accordance with EN 50005, combinations of version E correspond to EN 50011 and are to be preferred., DC-operated contactors DILA (C) -22 may only be combined with 2-pole auxiliary switches., Function: for standard applications, 1-pole, Connection technology: spring-loaded terminals, Rated operating current AC-15 220 V 230 V 240 V: Ie= 4 A, Rated operating current AC-15 380 V 400 V 415 V: Ie= 4 A, Contact configuration S = normally open: 1 S, Mounting type: side mounting, can be used for: DILMC7., DILMC9., DILMC12., DILMC15., DILAC., Design: side auxiliary switches, Notes: Positively guided contacts, in accordance with IEC/EN 60947-5-1 Appendix L, within the auxiliary switch modules and for the integrated auxiliary switches of the DILM 7 - DILM32, auxiliary break contact can be used as a mirror contact according to IEC/EN 60947-4-1 Appendix F (not late break contact)
