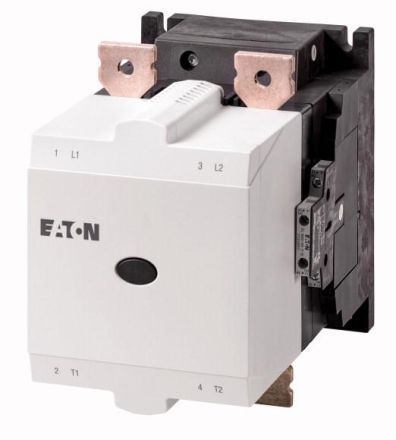

Eaton DILDC500/22 (RDS250) 2-pole DC contactor, 186873

In stock
SKU: 479642
€4,684.36
Into a basketIn the basketGo

Overview

DC power contactor, world market device UL/CSA, CCC, small dimensions, comfort series with the possibility of direct control via PLC, with integrated protective circuit in the control electronics, according to IEC/EN60947, with wide-range coil AC / DC, electronically controlled, minimized pull-in and holding power, increased electromagnetic compatibility, control line connections with screw terminals, auxiliary contacts 2S 2Ö mounted, safe separation according to EN 61140, positively guided contacts, screw mounting, can be used up to 1000V, protection class IP00, finger-safe with terminal cover according to EN50274, service life 1 million mechanical switching cycles, available accessories: side auxiliary switches

PropertyValue
Connection type main circuit:Connection rail
Number of auxiliary contacts as normally closed contacts:2
Number of normally open contacts as main contacts:2
Rated control supply voltage Us at AC 50 Hz:110 to 250 V
Rated control supply voltage Us at AC 60 Hz:110 to 250 V
Rated control supply voltage Us at DC:110 to 350 V
Suitable for series installation:no
Voltage type for actuation:DC

Characteristics

HABDILDC500/22 (RDS250) 2-pole
ManufacturerEaton
HAN186873
GTIN4015081819249
Connection type main circuitConnecting rail
Number of auxiliary contacts as normally open2
Number of auxiliary contacts as normally closed2
Number of normally open contacts as main contacts2
Rated control supply voltage Us at AC 50 Hz110 to 250 V
Rated control supply voltage Us at AC 60 Hz110 to 250 V
Rated control supply voltage Us at DC110 to 350 V
Suitable for series installationNo
Voltage type for actuationDC
