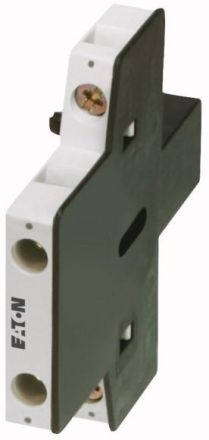

Auxiliary switch module, with positively guided contacts, Function: for standard applications, 2-pole, Connection technology: screw terminals, Rated operating current AC-15 220 V 230 V 240 V: Ie= 4 A, Rated operating current AC-15 380 V 400 V 415 V: Ie= 4 A, Rated operating current AC-15 380 V 400 V 500 V: Ie= 4 A, Contacts N/O = Normally open: 1 N/O, Contacts N/C = Normally closed: 1 N/C, Mounting type: side mounting, Usable for: DILM40 - DILM225A, DILMP63 - DILMP200, DILMF40 - DILMF95, Design: side auxiliary switches, Notes: Positively guided contacts, in accordance with IEC/EN 60947-5-1 Appendix L, within the Auxiliary switch modules, auxiliary break contact usable as mirror contact according to IEC/EN 60947-4-1 Annex F (not late break contact)
