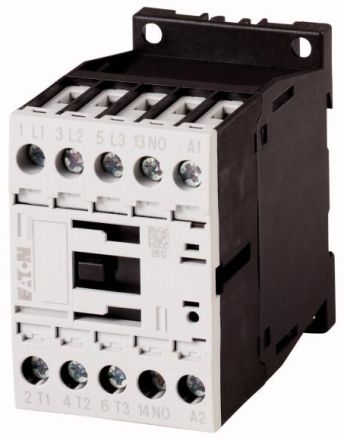

Eaton DILM12-10 (42V50/60HZ) contactor, 276835

In stock

SKU: 473792

Price on request

€45.56

€0

Overview

Power contactor, Application: Power contactor for motors, Power contactors up to 170 A, 3-pole, Utilization category: AC-1: Non-inductive or slightly inductive load, resistance furnaces, AC-3: Squirrel cage motors: starting, switching off during operation, AC-4: Squirrel cage motors: starting, countercurrent braking, reversing, tapping, Connection technology: screw terminals, Note: Also suitable for motors of efficiency class IE3., IE3-capable devices are marked with the logo on the packaging., Poles: 3-pole, Rated operating current AC-3 380 V 400 V: Ie= 12 A, Rated operating current AC-1 conventional thermal current, 3-pole, 50 - 60 Hz open at 40 °C: Ith = Ie= 22 A, encapsulated: Ith= 18 A, Rated operating current AC-1 conventional thermal current 1-pole open: Ith= 50 A, encapsulated: Ith= 45 A, max. rated operating power three-phase motors 50 - 60 Hz AC-3 220 V 230 V: P= 3.5 kW, 380 V 400 V: P= 5.5 kW, 660 V 690 V: P= 6.5 kW, max. rated operating power three-phase motors 50 - 60 Hz AC-4 220 V 230 V: P= 2 kW, 380 V 400 V: P= 3 kW, 660 V 690 V: P= 4.4 kW, can be combined with auxiliary switch: DILM32-XHI.., DILA-XHI (V) .., contact configuration S = normally open: 1 S, notes: switching elements in accordance with EN 50012., current type AC/DC: Alternating current operation

Property	Value
Number of normally open contacts as main contacts:	3
Number of auxiliary contacts as normally open contacts:	1
Rated operating power at AC-3, 400 V:	5.5 kW
Rated operating power at AC-4, 400 V:	3 kW
Rated operating current Ie at AC-1, 400 V:	22 A
Rated operating current Ie at AC-3, 400 V:	12 A
Rated operating current Ie at AC-4, 400 V:	7 A
Voltage type for actuation:	AC
Rated control supply voltage Us at AC 50 Hz:	42 V
Rated control supply voltage Us at AC 60 Hz:	42 V
Type of connection main circuit:	Screw connection
Suitable for series installation:	no
Rated operating power NEMA:	7.4 kW
