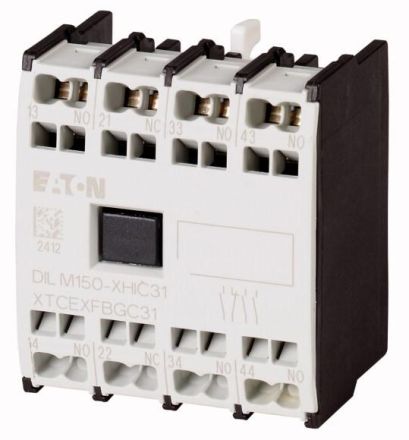

Auxiliary switch module, function: for standard applications, 4-pole, connection technology: spring-loaded terminals, rated operating current AC-15 220 V 230 V 240 V: Ie= 6 A, rated operating current AC-15 380 V 400 V 415 V: Ie= 4 A, contact configuration S = normally open: 1 S, contact configuration SF = early closer: 1 SF, contact configuration Ö = normally closed: 1 Ö, contact configuration ÖS = late open: 1 ÖS, mounting type: front mounting, can be used for: DILMC40., DILMC50., DILMC65., DILMC80., DILMC95., DILMC115., DILMC150., design: surface-mounted auxiliary switch, notes: auxiliary opener can be used as a mirror contact in accordance with IEC/EN 60947-4-1 Annex F (non-late opener)
