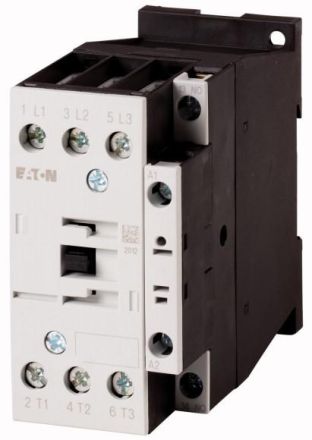

Eaton DILM25-10 (230V50HZ, 240V60HZ) contactor, 277132

Power contactor, Application: Power contactor for motors, Power contactors up to 170 A, 3-pole, Utilization category: AC-1: Non-inductive or slightly inductive load, resistance furnaces, AC-3: Squirrel cage motors: starting, switching off during operation, AC-4: Squirrel cage motors: starting, countercurrent braking, reversing, tapping, Connection technology: screw terminals, Note: Also suitable for motors of efficiency class IE3., IE3-capable devices are marked with the logo on the packaging., Poles: 3-pole, Rated operating current AC-3 380 V 400 V: Ie= 25 A, Rated operating current AC-1 conventional thermal current, 3-pole, 50 - 60 Hz open at 40 °C: Ith = Ie= 45 A, encapsulated: Ith= 36 A, Rated operating current AC-1 conventional thermal current 1-pole open: Ith= 100 A, encapsulated: Ith= 90 A, max. rated operating power three-phase motors 50 - 60 Hz AC-3 220 V 230 V: P= 7.5 kW, 380 V 400 V: P= 11 kW, 660 V 690 V: P= 14 kW, max. rated operating power three-phase motors 50 - 60 Hz AC-4 220 V 230 V: P= 3.5 kW, 380 V 400 V: P= 6 kW, 660 V 690 V: P= 8.5 kW, can be combined with auxiliary switch: DILM32-XHI.., DILA-XHI (V) .., DILM32-XHI11-S, contact configuration S = normally open: 1 S, notes: switching elements according to EN 50012., Current type AC/DC: Alternating current operation
