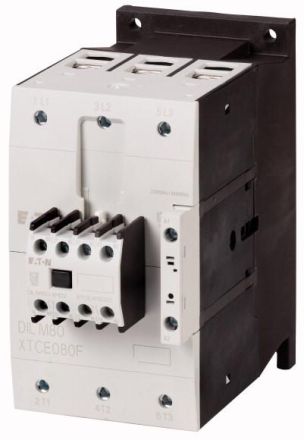

Eaton DILM80-22 (400V50HZ,440V60HZ) 37kW/400VAC contactor, 239451

Power contactor, Application: Power contactor for motors, complete devices up to 170 A, Utilization category: AC-1: Non-inductive or slightly inductive load, resistance furnaces, AC-3: Squirrel cage motors: starting, switching off during operation, AC-4: Squirrel cage motors: starting, countercurrent braking, reversing, tapping, Connection technology: screw terminals, Note: Also suitable for motors of efficiency class IE3., IE3-capable devices are marked with the logo on the packaging., Rated operating current AC-3 380 V 400 V: Ie= 80 A, Rated operating current AC-1 conventional thermal current, 3-pole, 50 - 60 Hz open at 40 °C: Ith = Ie= 110 A, encapsulated: Ith= 80 A, Rated operating current AC-1 conventional thermal current 1-pole open: Ith= 225 A, encapsulated: Ith= 200 A, max. rated operating power three-phase motors 50 - 60 Hz AC-3 220 V 230 V: P= 25 kW, 380 V 400 V: P= 37 kW, 660 V 690 V: P= 63 kW, max. rated operating power three-phase motors 50 - 60 Hz AC-4 220 V 230 V: P= 11.5 kW, 380 V 400 V: P= 19 kW, 660 V 690 V: P= 26 kW, contact configuration S = normally open: 2 S, contact configuration Ö = normally closed: 2 Ö, notes: switching elements in accordance with EN 50012., with mirror contact., current type AC/DC: alternating current operation
