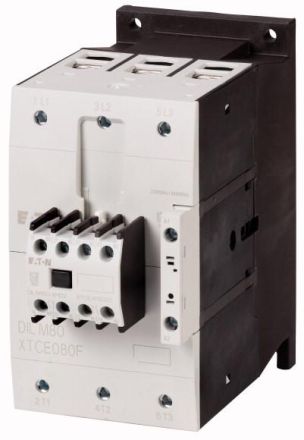

Eaton DILM80-22 (RDC24) contactor, 239463

In stock
SKU: 474819
€477.60
Into a basketIn the basketGo

Overview

Power contactor, Application: Power contactor for motors, complete devices up to 170 A, Utilization category: AC-1: Non-inductive or slightly inductive load, resistance furnaces, AC-3: Squirrel cage motors: starting, switching off during operation, AC-4: Squirrel cage motors: starting, countercurrent braking, reversing, tapping, Connection technology: screw terminals, Note: Also suitable for motors of efficiency class IE3., IE3-capable devices are marked with the logo on the packaging., Rated operating current AC-3 380 V 400 V: Ie= 80 A, Rated operating current AC-1 conventional thermal current, 3-pole, 50 - 60 Hz open at 40 °C: Ith = Ie= 110 A, encapsulated: Ith= 80 A, Rated operating current AC-1 conventional thermal current 1-pole open: Ith= 225 A, encapsulated: Ith= 200 A, max. rated operating power three-phase motors 50 - 60 Hz AC-3 220 V 230 V: P= 25 kW, 380 V 400 V: P= 37 kW, 660 V 690 V: P= 63 kW, max. rated operating power three-phase motors 50 - 60 Hz AC-4 220 V 230 V: P= 11.5 kW, 380 V 400 V: P= 20 kW, 660 V 690 V: P= 26 kW, contact configuration S = normally open: 2 S, contact configuration Ö = normally closed: 2 Ö, notes: switching elements in accordance with EN 50012, integrated protective circuit in the control electronics, with mirror contact, current type AC/DC: direct current operation

PropertyValue
Number of normally open contacts as main contacts:3
Number of auxiliary contacts as normally closed contacts:2
Number of auxiliary contacts as normally open contacts:2
Rated operating power at AC-3, 400 V:37 kW
Rated operating power at AC-4, 400 V:20 kW
Rated operating current Ie at AC-1, 400 V:110 A
Rated operating current Ie at AC-3, 400 V:80 A
Rated operating current Ie at AC-4, 400 V:40 A
Type of voltage for actuation:DC
Rated control supply voltage Us at DC:24 to 27 V
Type of connection main circuit:Screw connection
Suitable for series installation:no
Rated operating power NEMA:44.7 kW

Characteristics

HABDILM80-22 (RDC24)
ManufacturerEaton
HAN239463
GTIN4015082394639
Connection type main circuitScrew connection
Number of auxiliary contacts as normally open2
Number of auxiliary contacts as normally closed2
Number of normally open contacts as main contacts3
Rated operating power NEMA44.7kW
Rated operational power at AC-3, 400 V37kW
Rated operational power at AC-4, 400 V20kW
Rated operational current Ie at AC-1, 400 V110A
Rated operational current Ie at AC-3, 400 V80A
Rated operational current Ie at AC-4, 400 V40A
Rated control supply voltage Us at DC24 to 27 V
Suitable for series installationNo
Voltage type for actuationDC
