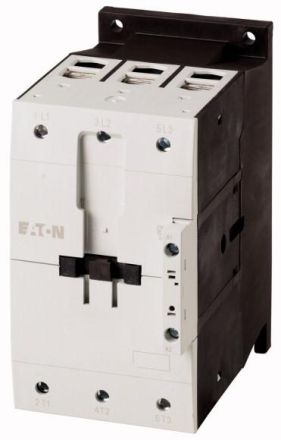

HABDILM95 (110V50HZ, 120V60HZ) 45kW/400V AC
HAN239477
GTIN4015082394776
Connection type main circuitScrew connection
Number of normally open contacts as main contacts3
Rated operating power NEMA55kW
Rated operational power at AC-3, 400 V45kW
Rated operational power at AC-4, 400 V26kW
Rated operational current Ie at AC-1, 400 V130A
Rated operational current Ie at AC-3, 400 V95 A
Rated operational current Ie at AC-4, 400 V50A
Rated control supply voltage Us at AC 50 Hz110V
Rated control supply voltage Us at AC 60 Hz120V
Suitable for series installationNo
Voltage type for actuationAC
