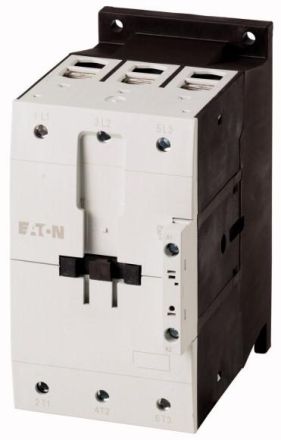

Eaton DILM95 (190V50HZ, 220V60HZ) 45kW/400V AC contactor, 239478

Power contactor, Application: Power contactor for motors, Power contactors up to 170 A, 3-pole, Utilization category: AC-1: Non-inductive or slightly inductive load, resistance furnaces, AC-3: Squirrel cage motors: starting, switching off during operation, AC-4: Squirrel cage motors: starting, countercurrent braking, reversing, tapping, Connection technology: screw terminals, Note: Also suitable for motors of efficiency class IE3., IE3-capable devices are marked with the logo on the packaging., Poles: 3-pole, Rated operating current AC-3 380 V 400 V: Ie= 95 A, Rated operating current AC-1 conventional thermal current, 3-pole, 50 - 60 Hz open at 40 °C: Ith = Ie= 130 A, encapsulated: Ith= 100 A, Rated operating current AC-1 conventional thermal current 1-pole open: Ith= 275 A, encapsulated: Ith= 250 A, max. rated operating power three-phase motors 50 - 60 Hz AC-3 220 V 230 V: P= 30 kW, 380 V 400 V: P= 45 kW, 660 V 690 V: P= 75 kW, max. rated operating power three-phase motors 50 - 60 Hz AC-4 220 V 230 V: P= 16 kW, 380 V 400 V: P= 26 kW, 660 V 690 V: P= 35 kW, can be combined with auxiliary switch: DILM150-XHI (V) .., DILM1000-XHI (V) .., Notes: Switching elements according to EN 50012., Current type AC/DC: AC operation
