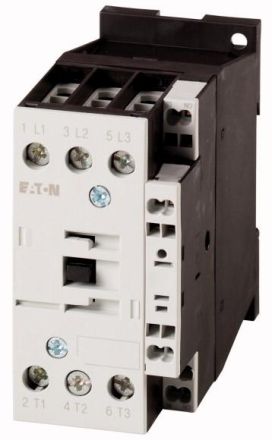

Eaton DILMC25-10 (230V50HZ, 240V60HZ) 11kW AC contactor, 277641

In stock
SKU: 474622
€12.65
Into a basketIn the basketGo

Overview

Power contactor, Application: Power contactor for motors, Power contactors up to 170 A, 3-pole, Utilization category: AC-1: Non-inductive or slightly inductive load, resistance furnaces, AC-3: Squirrel cage motors: starting, switching off during operation, AC-4: Squirrel cage motors: starting, countercurrent braking, reversing, tapping, Connection technology: Spring-loaded terminals, Note: Also suitable for motors of efficiency class IE3., IE3-capable devices are marked with the logo on the packaging., Description: Spring-loaded terminals on the auxiliary and control line connections, Poles: 3-pole, Rated operating current AC-3 380 V 400 V: Ie= 25 A, Rated operating current AC-1 conventional thermal current, 3-pole, 50 - 60 Hz open at 40 °C: Ith = Ie= 45 A, encapsulated: Ith= 36 A, Rated operating current AC-1 conventional thermal current 1-pole open: Ith= 100 A, encapsulated: Ith= 90 A, max. rated operating power three-phase motors 50 - 60 Hz AC-3 220 V 230 V: P= 7.5 kW, 380 V 400 V: P= 11 kW, 660 V 690 V: P= 14 kW, max. rated operating power three-phase motors 50 - 60 Hz AC-4 220 V 230 V: P= 3.5 kW, 380 V 400 V: P= 6 kW, 660 V 690 V: P= 8.5 kW, can be combined with auxiliary switch: DILM32-XHIC.., DILA-XHIC (V) .., contact configuration S = normally open: 1 S, Notes: Switching elements according to EN 50012., Auxiliary current, coil connections in spring-loaded connection technology., Main current connections with screw terminals., Current type AC/DC: Alternating current operation

PropertyValue
Number of normally open contacts as main contacts:3
Number of auxiliary contacts as normally open contacts:1
Rated operating power at AC-3, 400 V:11 kW
Rated operating power at AC-4, 400 V:6 kW
Rated operating current Ie at AC-1, 400 V:45 A
Rated operating current Ie at AC-3, 400 V:25 A
Rated operating current Ie at AC-4, 400 V:13 A
Voltage type for actuation:AC
Rated control supply voltage Us at AC 50 Hz:230 V
Rated control supply voltage Us at AC 60 Hz:240 V
Type of connection main circuit:Spring-loaded connection
Suitable for series installation:no
Rated operating power NEMA:11 kW

Characteristics

HABDILMC25-10 (230V50HZ, 240V60HZ) 11kW AC
ManufacturerEaton
HAN277641
GTIN4015082776411
Connection type main circuitSpring-loaded connection
Number of auxiliary contacts as normally open1
Number of normally open contacts as main contacts3
Rated operating power NEMA11kW
Rated operational power at AC-3, 400 V11kW
Rated operational power at AC-4, 400 V6kW
Rated operational current Ie at AC-1, 400 V45A
Rated operational current Ie at AC-3, 400 V25A
Rated operational current Ie at AC-4, 400 V13 A
Rated control supply voltage Us at AC 50 Hz230V
Rated control supply voltage Us at AC 60 Hz240V
Suitable for series installationNo
Voltage type for actuationAC
