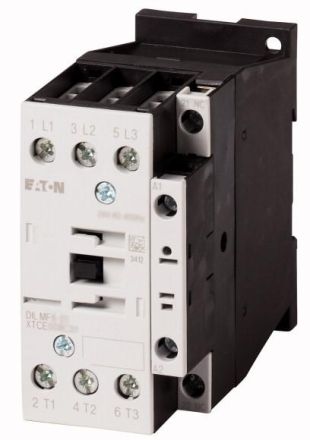

Power contactor, Application: Power contactor for the semiconductor industry according to SEMI F47, Power contactors up to 150 A with electronic drive, Utilization category: AC-1: Non-inductive or slightly inductive load, resistance furnaces, AC-3: Squirrel cage motors: starting, switching off during operation, AC-4: Squirrel cage motors: starting, countercurrent braking, reversing, tapping, Connection technology: screw terminals, Note: Also suitable for motors of efficiency class IE3., IE3-capable devices are marked with the logo on the packaging., Description: Contactors suitable for the semiconductor industry according to SEMI F47., Contactors hum-free, suitable for building automation., Drive can be used at 50 Hz to 400 Hz., Poles: 3-pole, Rated operating current AC-3 380 V 400 V: Ie= 12 A, Rated operating current AC-1 conventional thermal current, 3-pole, 50 - 60 Hz open at 40 °C: Ith = Ie= 22 A, encapsulated: Ith= 18 A, rated operating current AC-1 conventional thermal current 1-pole open: Ith= 50 A, encapsulated: Ith= 45 A, max. rated operating power three-phase motors 50 - 60 Hz AC-3 220 V 230 V: P= 3.5 kW, 380 V 400 V: P= 5.5 kW, 660 V 690 V: P= 6.5 kW, max. rated operating power three-phase motors 50 - 60 Hz AC-4 220 V 230 V: P= 2 kW, 380 V 400 V: P= 3 kW, 660 V 690 V: P= 4.4 kW, contact configuration Ö = normally closed: 1 Ö, Notes: Switching elements according to EN 50012., Integrated protective circuit., With mirror contact.
| Property | Value |
| Number of normally open contacts as main contacts: | 3 |
| Number of auxiliary contacts as normally closed contacts: | 1 |
| Rated operating power at AC-3, 400 V: | 5.5 kW |
| Rated operating power at AC-4, 400 V: | 3 kW |
| Rated operating current Ie at AC-1, 400 V: | 20 A |
| Rated operating current Ie at AC-3, 400 V: | 12 A |
| Rated operating current Ie at AC-4, 400 V: | 7 A |
| Voltage type for actuation: | AC |
| Rated control supply voltage Us at AC 50 Hz: | 190 to 240 V |
| Rated control supply voltage Us at AC 60 Hz: | 190 to 240 V |
| Type of connection main circuit: | Screw connection |
| Suitable for series installation: | no |
| Rated operating power NEMA: | 7.4 kW |
