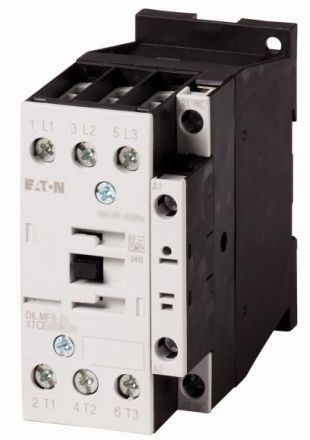

Eaton DILMF32-01 (RAC48) 600V 25HP SEMI F47 Contactor, 104455

Power contactor, Application: Power contactor for the semiconductor industry according to SEMI F47, Power contactors up to 150 A with electronic drive, Utilization category: AC-1: Non-inductive or slightly inductive load, resistance furnaces, AC-3: Squirrel cage motors: starting, switching off during operation, AC-4: Squirrel cage motors: starting, countercurrent braking, reversing, tapping, Connection technology: screw terminals, Note: Also suitable for motors of efficiency class IE3., IE3-capable devices are marked with the logo on the packaging., Rated operating current AC-3 380 V 400 V: Ie= 32 A, Rated operating current AC-1 conventional thermal current, 3-pole, 50 - 60 Hz open at 40 °C: Ith = Ie= 45 A, encapsulated: Ith= 36 A, Rated operating current AC-1 conventional thermal current 1-pole open: Ith= 100 A, encapsulated: Ith= 90 A, max. rated operating power three-phase motors 50 - 60 Hz AC-3 220 V 230 V: P= 10 kW, 380 V 400 V: P= 15 kW, 660 V 690 V: P= 17 kW, max. rated operating power three-phase motors 50 - 60 Hz AC-4 220 V 230 V: P= 4 kW, 380 V 400 V: P= 7 kW, 660 V 690 V: P= 10 kW, contact configuration Ö = normally closed: 1 Ö, notes: switching elements in accordance with EN 50012, integrated protective circuit, with mirror contact.
