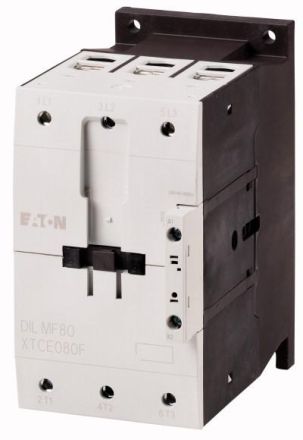

Eaton DILMF80 (RAC24) 600V 75HP SEMI F47 contactor, 104470

Power contactor, Application: Power contactor for the semiconductor industry according to SEMI F47, Power contactors up to 150 A with electronic drive, Utilization category: AC-1: Non-inductive or slightly inductive load, resistance furnaces, AC-3: Squirrel cage motors: starting, switching off during operation, AC-4: Squirrel cage motors: starting, countercurrent braking, reversing, tapping, Connection technology: screw terminals, Note: Also suitable for motors of efficiency class IE3., IE3-capable devices are marked with the logo on the packaging., Rated operating current AC-3 380 V 400 V: Ie= 80 A, Rated operating current AC-1 conventional thermal current, 3-pole, 50 - 60 Hz open at 40 °C: Ith = Ie= 110 A, encapsulated: Ith= 80 A, Rated operating current AC-1 conventional thermal current 1-pole open: Ith= 225 A, encapsulated: Ith= 200 A, max. rated operating power three-phase motors 50 - 60 Hz AC-3 220 V 230 V: P= 25 kW, 380 V 400 V: P= 37 kW, 660 V 690 V: P= 63 kW, max. rated operating power three-phase motors 50 - 60 Hz AC-4 220 V 230 V: P= 11.5 kW, 380 V 400 V: P= 20 kW, 660 V 690 V: P= 26 kW, Notes: Switching elements according to EN 50012., Integrated protective circuit.
