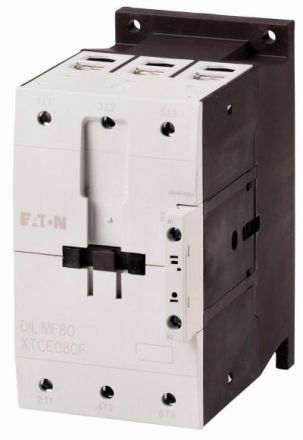

Eaton DILMF80 (RAC240) 600V 75HP SEMI F47 contactor, 104473

In stock
SKU: 476716
€463.91
Into a basketIn the basketGo

Overview

Power contactor, Application: Power contactor for the semiconductor industry according to SEMI F47, Power contactors up to 150 A with electronic drive, Utilization category: AC-1: Non-inductive or slightly inductive load, resistance furnaces, AC-3: Squirrel cage motors: starting, switching off during operation, AC-4: Squirrel cage motors: starting, countercurrent braking, reversing, tapping, Connection technology: screw terminals, Note: Also suitable for motors of efficiency class IE3., IE3-capable devices are marked with the logo on the packaging., Description: Contactors suitable for the semiconductor industry according to SEMI F47., Contactors hum-free, suitable for building automation., Drive can be used at 50 Hz to 400 Hz., Poles: 3-pole, Rated operating current AC-3 380 V 400 V: Ie= 80 A, Rated operating current AC-1 conventional thermal current, 3-pole, 50 - 60 Hz open at 40 °C: Ith = Ie= 110 A, encapsulated: Ith= 80 A, rated operating current AC-1 conventional thermal current 1-pole open: Ith= 225 A, encapsulated: Ith= 200 A, max. rated operating power three-phase motors 50 - 60 Hz AC-3 220 V 230 V: P= 25 kW, 380 V 400 V: P= 37 kW, 660 V 690 V: P= 63 kW, max. rated operating power three-phase motors 50 - 60 Hz AC-4 220 V 230 V: P= 11.5 kW, 380 V 400 V: P= 20 kW, 660 V 690 V: P= 26 kW, Notes: Switching elements according to EN 50012., Integrated protective circuit.

PropertyValue
Number of normally open contacts as main contacts:3
Rated operating power at AC-3, 400 V:37 kW
Rated operating power at AC-4, 400 V:20 kW
Rated operating current Ie at AC-1, 400 V:90 A
Rated operating current Ie at AC-3, 400 V:80 A
Rated operating current Ie at AC-4, 400 V:40 A
Voltage type for Actuation:AC
Rated control supply voltage Us at AC 50 Hz:190 to 240 V
Rated control supply voltage Us at AC 60 Hz:190 to 240 V
Main circuit connection type:Screw connection
Suitable for series installation:no
Rated operating power NEMA:44.7 kW

Characteristics

HABDILMF80 (RAC240) 600V 75HP SEMI-F47
ManufacturerEaton
HAN104473
GTIN4015081042906
Connection type main circuitScrew connection
Number of normally open contacts as main contacts3
Rated operating power NEMA44.7kW
Rated operational power at AC-3, 400 V37kW
Rated operational power at AC-4, 400 V20kW
Rated operational current Ie at AC-1, 400 V90A
Rated operational current Ie at AC-3, 400 V80A
Rated operational current Ie at AC-4, 400 V40A
Rated control supply voltage Us at AC 50 Hz190 to 240 V
Rated control supply voltage Us at AC 60 Hz190 to 240 V
Suitable for series installationNo
Voltage type for actuationAC
