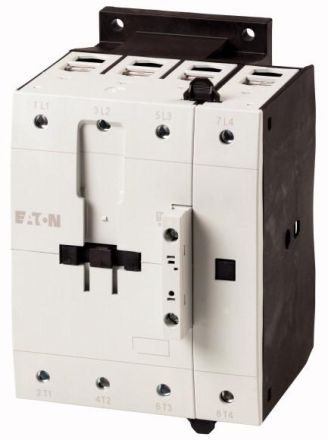

Eaton DILMP125 (RAC240) 125A/AC1 AC 4-pole power contactor, 109905

In stock
SKU: 473820
€424.01
Into a basketIn the basketGo

Overview

Power contactor, Application: Power contactor for 4-pole consumers, Power contactors up to 200 A, 4-pole, Utilization category: AC-1: Non-inductive or slightly inductive load, resistance furnaces, AC-3: Squirrel cage motors: Starting, switching off during operation, Connection technology: Screw terminals, Poles: 4-pole, 380 V 400 V: Ie= 80 A, conventional thermal current, 3-pole, 50 - 60 Hz open at 40 °C: Ith = Ie= 125 A, encapsulated: Ith= 100 A, conventional thermal current 1-pole open: Ith= 325 A, encapsulated: Ith= 292 A, 220 V 230 V: P= 25 kW, 380 V 400 V: P= 37 kW, 660 V 690 V: P= 63 kW, Notes: Switching elements according to EN 50012., Integrated protective circuit in the control electronics., Current type AC/DC: Alternating current operation

PropertyValue
Number of normally open contacts as main contacts:4
Rated operating power at AC-3, 400 V:37 kW
Rated operating power at AC-4, 400 V:28 kW
Rated operating current Ie at AC-1, 400 V:125 A
Rated operating current Ie at AC-3, 400 V:80 A
Rated operating current Ie at AC-4, 400 V:115 A
Voltage type for Actuation:AC
Rated control supply voltage Us at AC 50 Hz:190 to 240 V
Rated control supply voltage Us at AC 60 Hz:190 to 240 V
Main circuit connection type:Screw connection
Suitable for series installation:no
Rated operating power NEMA:44.7 kW

Characteristics

HABDILMP125 (RAC240) 125A/AC1 AC 4-pole
ManufacturerEaton
HAN109905
GTIN4015081094714
Connection type main circuitScrew connection
Number of normally open contacts as main contacts4
Rated operating power NEMA44.7kW
Rated operational power at AC-3, 400 V37kW
Rated operational power at AC-4, 400 V28kW
Rated operational current Ie at AC-1, 400 V125A
Rated operational current Ie at AC-3, 400 V80A
Rated operational current Ie at AC-4, 400 V115 A
Rated control supply voltage Us at AC 50 Hz190 to 240 V
Rated control supply voltage Us at AC 60 Hz190 to 240 V
Suitable for series installationNo
Voltage type for actuationAC
