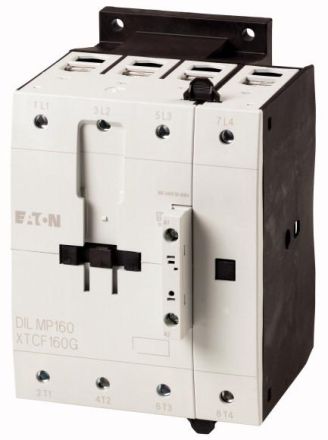

Eaton DILMP160 (RDC24) 160A/AC1 AC 4-pole power contactor, 109920

In stock
SKU: 476880
€556.23
Into a basketIn the basketGo

Overview

Power contactor, Application: Power contactor for 4-pole consumers, Power contactors up to 200 A, 4-pole, Utilization category: AC-1: Non-inductive or slightly inductive load, resistance furnaces, AC-3: Squirrel cage motors: Starting, switching off during operation, Connection technology: Screw terminals, Poles: 4-pole, 380 V 400 V: Ie= 95 A, conventional thermal current, 3-pole, 50 - 60 Hz open at 40 °C: Ith = Ie= 160 A, encapsulated: Ith= 128 A, conventional thermal current 1-pole open: Ith= 415 A, encapsulated: Ith= 373 A, 220 V 230 V: P= 30 kW, 380 V 400 V: P= 45 kW, 660 V 690 V: P= 75 kW, Notes: Switching elements according to EN 50012., Integrated protective circuit in the control electronics., Current type AC/DC: Direct current operation

PropertyValue
Number of normally open contacts as main contacts:4
Rated operating power at AC-3, 400 V:45 kW
Rated operating power at AC-4, 400 V:33 kW
Rated operating current Ie at AC-1, 400 V:160 A
Rated operating current Ie at AC-3, 400 V:95 A
Rated operating current Ie at AC-4, 400 V:65 A
Voltage type for Actuation:DC
Rated control supply voltage Us at DC:24 to 27 V
Connection type main circuit:Screw connection
Suitable for series installation:no
Rated operating power NEMA:55 kW

Characteristics

HABDILMP160 (RDC24) 160A/AC1 AC 4-pole
ManufacturerEaton
HAN109920
GTIN4015081094868
Connection type main circuitScrew connection
Number of normally open contacts as main contacts4
Rated operating power NEMA55kW
Rated operational power at AC-3, 400 V45kW
Rated operational power at AC-4, 400 V33kW
Rated operational current Ie at AC-1, 400 V160A
Rated operational current Ie at AC-3, 400 V95 A
Rated operational current Ie at AC-4, 400 V65A
Rated control supply voltage Us at DC24 to 27 V
Suitable for series installationNo
Voltage type for actuationDC
Eaton DILMP160 (RDC24) 160A/AC1 AC 4-pole power contactor, 109920
Eaton DILMP160 (RDC24) 160A/AC1 AC 4-pole power contactor, 109920
