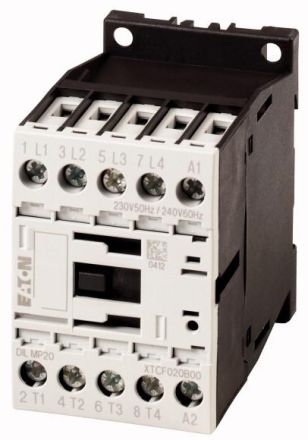

Eaton DILMP20 (230V50HZ,240V60HZ) Protection , 276970

In stock

SKU: 475128

Price on request

€45.15

€0

Overview

Power contactor, Application: Power contactor for 4-pole consumers, Power contactors up to 200 A, 4-pole, Utilization category: AC-1: Non-inductive or slightly inductive load, resistance furnaces, AC-3: Squirrel cage motors: Starting, switching off during operation, Connection technology: Screw terminals, Poles: 4-pole, 380 V 400 V: Ie= 12 A, conventional thermal current, 3-pole, 50 - 60 Hz open at 40 °C: Ith = Ie= 22 A, encapsulated: Ith= 18 A, conventional thermal current 1-pole open: Ith= 60 A, encapsulated: Ith= 54 A, 220 V 230 V: P= 3.5 kW, 380 V 400 V: P= 5.5 kW, 660 V 690 V: P= 6.5 kW, Notes: Switching elements according to EN 50012., Current type AC/DC: Alternating current operation

Property	Value
Number of normally open contacts as main contacts:	4
Rated operating power at AC-3, 400 V:	5.5 kW
Rated operating power at AC-4, 400 V:	4.5 kW
Rated operating current Ie at AC-1, 400 V:	22 A
Rated operating current Ie at AC-3, 400 V:	12 A
Rated operating current Ie at AC-4, 400 V:	10 A
Voltage type for Actuation:	AC
Rated control supply voltage Us at AC 50 Hz:	230 V
Rated control supply voltage Us at AC 60 Hz:	240 V
Type of connection main circuit:	Screw connection
Suitable for series installation:	no
