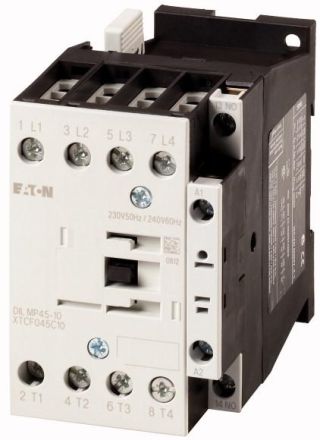

Eaton DILMP45-10 (240V50HZ) 45A/AC1 AC 4-pole power contactor, 109827

Eaton DILMP45-10 (240V50HZ) 45A/AC1 AC 4-pole power contactor, 109827

In stock

SKU: 477004

Price on request

€104.54

€0

Overview

Power contactor, Application: Power contactor for 4-pole consumers, Power contactors up to 200 A, 4-pole, Utilization category: AC-1: Non-inductive or slightly inductive load, resistance furnaces, AC-3: Squirrel cage motors: Starting, switching off during operation, Connection technology: Screw terminals, Poles: 4-pole, 380 V 400 V: Ie= 25 A, conventional thermal current, 3-pole, 50 - 60 Hz open at 40 °C: Ith = Ie= 45 A, encapsulated: Ith= 36 A, conventional thermal current 1-pole open: Ith= 117 A, encapsulated: Ith= 105 A, 220 V 230 V: P= 7.5 kW, 380 V 400 V: P= 11 kW, 660 V 690 V: P= 14 kW, Contacts S = Normally open: 1 S, Notes: Switching elements according to EN 50012., Current type AC/DC: Alternating current operation

Property	Value
Number of normally open contacts as main contacts:	4
Number of auxiliary contacts as normally open contacts:	1
Rated operating power at AC-3, 400 V:	11 kW
Rated operating power at AC-4, 400 V:	7 kW
Rated operating current Ie at AC-1, 400 V:	45 A
Rated operating current Ie at AC-3, 400 V:	25 A
Rated operating current Ie at AC-4, 400 V:	15 A
Voltage type for actuation:	AC
Rated control supply voltage Us at AC 50 Hz:	240 V
Connection type main circuit:	screw connection
Suitable for series installation:	no
Rated operating power NEMA:	11 kW
