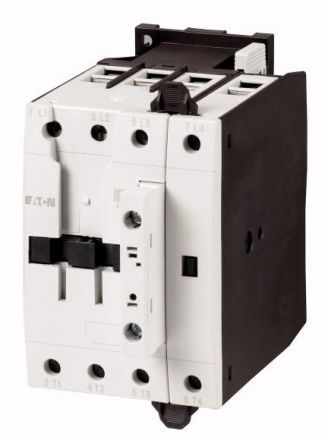

Eaton DILMP80 (220V50HZ, 240V60HZ) AC Contactor , 109882

Eaton DILMP80 (220V50HZ, 240V60HZ) AC Contactor , 109882

In stock

SKU: 476259

Price on request

€314.70

€0

Overview

Power contactor, Application: Power contactor for 4-pole consumers, Power contactors up to 200 A, 4-pole, Utilization category: AC-1: Non-inductive or slightly inductive load, resistance furnaces, AC-3: Squirrel cage motors: Starting, switching off during operation, Connection technology: Screw terminals, Poles: 4-pole, 380 V 400 V: Ie= 50 A, conventional thermal current, 3-pole, 50 - 60 Hz open at 40 °C: Ith = Ie= 80 A, encapsulated: Ith= 64 A, conventional thermal current 1-pole open: Ith= 207 A, encapsulated: Ith= 186 A, 220 V 230 V: P= 15.5 kW, 380 V 400 V: P= 22 kW, 660 V 690 V: P= 30 kW, Notes: Switching elements according to EN 50012., Current type AC/DC: Alternating current operation

Property	Value
Number of normally open contacts as main contacts:	4
Rated operating power at AC-3, 400 V:	22 kW
Rated operating power at AC-4, 400 V:	20 kW
Rated operating current Ie at AC-1, 400 V:	80 A
Rated operating current Ie at AC-3, 400 V:	50 A
Rated operating current Ie at AC-4, 400 V:	40 A
Voltage type for Actuation:	AC
Rated control supply voltage Us at AC 50 Hz:	220 V
Rated control supply voltage Us at AC 60 Hz:	240 V
Main circuit connection type:	Screw connection
Suitable for series installation:	no
Rated operating power NEMA:	29.8 kW
