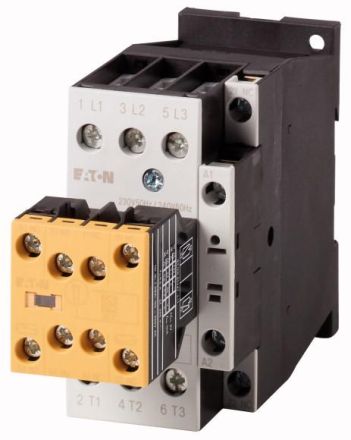

Safety contactor, Application: Power contactor for motors, complete devices up to 170 A, Utilization category: AC-1: Non-inductive or slightly inductive load, resistance furnaces, AC-3: Squirrel cage motors: starting, switching off during operation, AC-4: Squirrel cage motors: starting, countercurrent braking, reversing, tapping, Connection technology: screw terminals, Note: Also suitable for motors of efficiency class IE3., IE3-capable devices are marked with the logo on the packaging., Description: With two electronically compatible microswitches 1 NO + 1 NC, auxiliary switch module permanently connected to the basic device (manual operation not possible)., Rated operating current AC-3 380 V 400 V: Ie= 32 A, Rated operating current AC-1 conventional thermal current, 3-pole, 50 - 60 Hz open at 40 °C: Ith = Ie= 45 A, encapsulated: Ith= 36 A, rated operating current AC-1 conventional thermal current 1-pole open: Ith= 100 A, encapsulated: Ith= 90 A, max. rated operating power three-phase motors 50 - 60 Hz AC-3 220 V 230 V: P= 10 kW, 380 V 400 V: P= 15 kW, 660 V 690 V: P= 17 kW, max. rated operating power three-phase motors 50 - 60 Hz AC-4 220 V 230 V: P= 4 kW, 380 V 400 V: P= 7 kW, 660 V 690 V: P= 10 kW, contact configuration S = normally open: 2 S, contact configuration Ö = normally closed: 3 Ö, notes: switching elements according to EN 50012., Integrated protective circuit in the control electronics., With mirror contact (not for microswitches)., Current type AC/DC: direct current operation
| Property | Value |
| Number of normally open contacts as main contacts: | 3 |
| Number of auxiliary contacts as normally closed contacts: | 3 |
| Number of auxiliary contacts as normally open contacts: | 2 |
| Rated operating power at AC-3, 400 V: | 15 kW |
| Rated operating power at AC-4, 400 V: | 7 kW |
| Rated operating current Ie at AC-1, 400 V: | 45 A |
| Rated operating current Ie at AC-3, 400 V: | 32 A |
| Rated operating current Ie at AC-4, 400 V: | 15 A |
| Type of voltage for actuation: | DC |
| Rated control supply voltage Us at DC: | 24 V |
| Type of connection main circuit: | screw connection |
| Suitable for series installation: | no |
| Rated operating power NEMA: | 14.9 kW |
