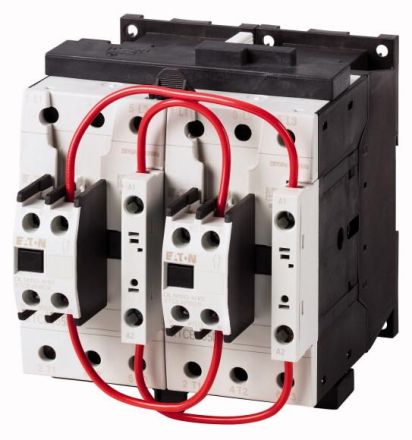

Eaton DIULM40/11 (110V50HZ, 120V60HZ) 18.5kW AC reversing contactor, 278208

In stock
SKU: 477984
€387.27
Into a basketIn the basketGo

Overview

Reversing contactor combination, Application: Contactor combinations for motor starting with two directions of rotation, Accessories: DIUL reversing combinations, Utilization category: AC-3: Squirrel cage motors: starting, switching off during operation, AC-4: Squirrel cage motors: starting, countercurrent braking, reversing, inching, Rated operating current AC-3 380 V 400 V: Ie= 40 A, Max. rated operating power three-phase motors 50 - 60 Hz AC-3 220 V 230 V: P= 12.5 kW, 380 V 400 V: P= 18.5 kW, 660 V 690 V: P= 23 kW, Actuating voltage: 110 V 50 Hz, 120 V 60 Hz, Current type AC/DC: Alternating current operation, Note: Also suitable for motors of efficiency class IE3., IE3-capable devices are equipped with the Logo marked on the packaging.

PropertyValue
Connection type main circuit:Screw connection
Voltage type for actuation:AC
Function:Reversing contactor
Rated operating power at AC-3, 400 V:18.5 kW
Rated control supply voltage Us at AC 50 Hz:110 V
Rated control supply voltage Us at AC 60 Hz:120 V
Degree of protection (IP):IP00
Rated operating current Ie at AC-3, 400 V:40 A
NEMA rated operating power:22 kW

Characteristics

HABDIULM40/11 (110V50HZ, 120V60HZ) 18.5kW AC
ManufacturerEaton
HAN278208
GTIN4015082782085
Connection type main circuitScrew connection
Rated operating power NEMA22kW
Rated operational power at AC-3, 400 V18.5kW
Rated operational current Ie at AC-3, 400 V40A
Rated control supply voltage Us at AC 50 Hz110V
Rated control supply voltage Us at AC 60 Hz120V
FunctionReversing contactor
IP protection)IP00
Voltage type for actuationAC
