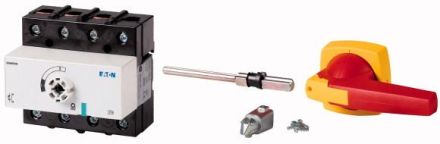

Eaton DMM-125/3/M4/PR 3-pole 125A red switch disconnector, 6094964

Eaton DMM-125/3/M4/PR 3-pole 125A red switch disconnector, 6094964

In stock

SKU: 478530

Price on request

€243.69

€0

Overview

Load disconnector, Product range: Load disconnector, main switch, maintenance switch, Type code: DMM, STOP function: EMERGENCY STOP function, with red rotary handle and yellow locking ring, Note: with metal axis for control cabinet depth 400 mm, Information on scope of delivery: Auxiliary switch contact can be retrofitted., 3-pole, Protection class: IP20, Design: Intermediate installation, Rated operating power AC-23A, 50 - 60 Hz 400 V: P = 59 kW, Rated continuous current: Iu = 125 A, Standards and regulations: IEC/EN 60947,0660, IEC/EN 60204, Load disconnector according to IEC/EN 60947-3

Property	Value
Number of poles:	3
Rated operating power at AC-23, 400 V:	59 kW
Rated continuous current Iu:	125 A
Max. Rated operating voltage Ue at AC:	690 V
Emergency stop device design:	yes
Protection class (IP), front:	IP20
Main circuit connection type:	screw connection
Device design:	Built-in device, fixed installation technology
Design of the actuating element:	long rotary handle
Suitable for floor mounting:	yes
Conditional rated short-circuit current Iq:	50 kA
Integrated motor drive:	no
Suitable for front mounting 4-hole:	no
Version as maintenance/repair switch:	yes
Voltage release optional:	no
Suitable for front mounting central:	no
Suitable for intermediate installation:	no
Suitable for distribution board installation:	yes
Version as main switch:	yes
Version as safety switch:	no
Motor drive optional:	no
Lockable:	no
Version as reversing switch:	no
Rated short-time withstand current Icw:	2.5 kA
Color of the actuating element:	red
Rated operating voltage:	690 V
Rated continuous current at AC-21, 400 V:	125 A
Number of switches:	1
Rated continuous current at AC-23, 400 V:	66 A
Protection class (NEMA):	other
