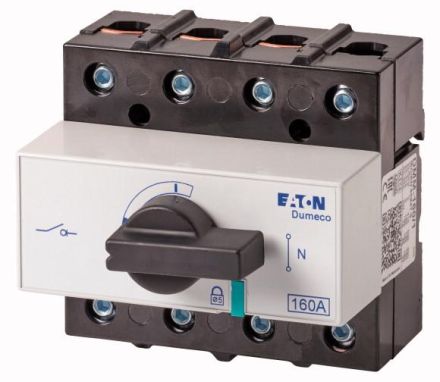

Eaton DMM-160/1 load disconnector, 6093345

In stock

SKU: 478289

Price on request

€245.90

€0

Overview

Load disconnector, Product range: Load disconnector, main switch, maintenance switch, Type identifier: DMM, with black rotary handle and drive shaft, Notes: visible contacts, Information on scope of delivery: Auxiliary switch contact can be retrofitted., including connection accessories, 3-pole + SN (direct), Protection class: IP20, Design: Surface mounting, Rated operating power AC-23A, 50 - 60 Hz 400 V: P = 80 kW, Rated continuous current: Iu = 160 A, Standards and regulations: IEC/EN 60947,0660, IEC/EN 60204, Load disconnector according to IEC/EN 60947-3

Property	Value
Number of poles:	4
Rated operational power at AC-23, 400 V:	75 kW
Rated continuous current Iu:	160 A
Max. Rated operating voltage Ue at AC:	690 V
Version as EMERGENCY STOP device:	no
Protection class (IP), front:	IP20
Connection type main circuit:	screw connection
Device design:	Built-in device, fixed installation technology
Design of the actuating element:	short rotary handle
Suitable for floor mounting:	yes
Conditional rated short-circuit current Iq:	50 kA
Motor drive integrated:	no
Suitable for front mounting 4-hole:	no
Version as maintenance/repair switch:	yes
Voltage release optional:	no
Suitable for front mounting central:	no
Suitable for intermediate installation:	yes
Suitable for distribution board installation:	no
Version as main switch:	yes
Version as safety switch:	no
Motor drive optional:	no
Lockable:	no
Version as reversing switch:	no
Rated short-time withstand current Icw:	2.5 kA
Color of the actuating element:	black
Rated operating voltage:	690 V
Rated continuous current at AC-21, 400 V:	160 A
Number of switches:	1
Rated continuous current at AC-23, 400 V:	140 A
Protection class (NEMA):	other

Characteristics

HABDMM-160/1

Manufacturer

HAN6093345

GTIN8711426530652

Connection type main circuitScrew connection

Number of switches1

Designed as main switchYes

Designed as an EMERGENCY STOP deviceNo

Designed as a safety switchNo

Designed as a maintenance/repair switchYes

Version as reversing switchNo

Design of the actuating elementShort twist grip

Conditional rated short-circuit current Iq50kA

Rated operational power at AC-23, 400 V75kW

Rated operating voltage690V

Rated continuous current Iu160A

Rated continuous current at AC-21, 400 V160A

Rated continuous current at AC-23, 400 V140A

Rated short-time withstand current Icw2.5kA

Color of the actuatorBlack

Suitable for floor mountingYes

Suitable for front mounting 4-holeNo

Suitable for front mounting CentralNo

Suitable for distribution board installationNo

Suitable for intermediate constructionYes

Device typeBuilt-in device Fixed installation technology

Max. rated operating voltage Ue at AC690V

Motor drive integratedNo

Motor drive optionalNo

Number of poles4

Protection class (IP), frontIP20

Protection class (NEMA)Other

Voltage release optionalNo

LockableNo
