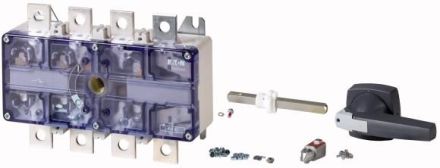

Eaton DMV-400/3/M4/PG 3-pole 400A grey switch disconnector, 6099272

Eaton DMV-400/3/M4/PG 3-pole 400A grey switch disconnector, 6099272

In stock

SKU: 478541

Price on request

€339.10

€0

Overview

Load disconnector, Product range: Load disconnector, main switch, maintenance switch, Type code: DMV, with grey rotary handle, Note: with metal axis for control cabinet depth 400 mm, Information on scope of delivery: Auxiliary switch contact can be retrofitted., 3-pole, Protection class: Front IP65, Design: Intermediate installation, Rated operating power AC-23A, 50 - 60 Hz 400 V: P = 180 kW, Rated continuous current: Iu = 400 A, Standards and regulations: IEC/EN 60947,0660, IEC/EN 60204, Load disconnector according to IEC/EN 60947-3

Property	Value
Number of poles:	3
Rated operational power at AC-23, 400 V:	400 kW
Rated continuous current Iu:	400 A
Max. Rated operating voltage Ue at AC:	690 V
Version as EMERGENCY STOP device:	no
Protection class (IP), front:	IP65
Connection type main circuit:	screw connection
Device design:	Built-in device, fixed installation technology
Design of the actuating element:	short rotary handle
Suitable for floor mounting:	yes
Conditional rated short-circuit current Iq:	50 kA
Motor drive integrated:	no
Suitable for front mounting 4-hole:	no
Version as maintenance/repair switch:	no
Voltage release optional:	no
Suitable for front mounting central:	no
Suitable for intermediate installation:	yes
Suitable for distribution board installation:	no
Version as main switch:	yes
Version as safety switch:	no
Motor drive optional:	no
Lockable:	yes
Version as reversing switch:	no
Rated short-time withstand current Icw:	12 kA
Color of the actuating element:	grey
Rated operating voltage:	690 V
Switching capacity at 400 V:	400 kW
Rated continuous current at AC-21, 400 V:	400 A
Number of switches:	1
Rated continuous current at AC-23, 400 V:	333 A
Protection class (NEMA):	12
