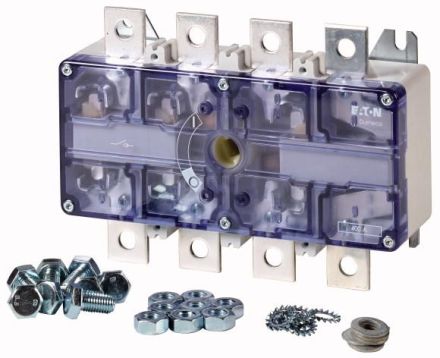

Eaton DMV400N/4 DUMECO DMV400N/4 load disconnector, 1814413

Eaton DMV400N/4 DUMECO DMV400N/4 load disconnector, 1814413

In stock

SKU: 478422

Price on request

€271.09

€0

Overview

Load disconnector, Product range: Load disconnector, main switch, maintenance switch, Type code: DMV, STOP function: optional, without rotary handle and drive shaft, Notes: visible contacts, Information on scope of delivery: Auxiliary switch contact can be retrofitted., including connection accessories, 4-pole, Protection class: IP00, IP20 with terminal cover, Design: Surface mounting, Rated operating power AC-23A, 50 - 60 Hz 400 V: P = 180 kW, Rated continuous current: Iu = 400 A, Standards and regulations: IEC/EN 60947,0660, IEC/EN 60204, Load disconnector according to IEC/EN 60947-3

Property	Value
Number of poles:	4
Rated operational power at AC-23, 400 V:	180 kW
Rated continuous current Iu:	400 A
Max. Rated operating voltage Ue at AC:	690 V
Design as EMERGENCY STOP device:	yes
Protection class (IP), front:	IP20
Connection type main circuit:	screw connection
Device design:	Complete device in housing
Design of the actuating element:	other
Suitable for floor mounting:	yes
Conditional rated short-circuit current Iq:	100 kA
Motor drive integrated:	no
Suitable for front mounting 4-hole:	no
Version as maintenance/repair switch:	no
Voltage release optional:	no
Suitable for front mounting central:	no
Suitable for intermediate installation:	no
Suitable for distribution board installation:	no
Version as main switch:	no
Version as safety switch:	no
Motor drive optional:	no
Lockable:	no
Version as reversing switch:	no
Rated short-time withstand current Icw:	12 kA
Color of the actuating element:	other
Rated operating voltage:	690 V
Switching capacity at 400 V:	180 kW
Rated continuous current at AC-21, 400 V:	400 A
Number of switches:	1
Rated continuous current at AC-23, 400 V:	333 A
Protection class (NEMA):	other
