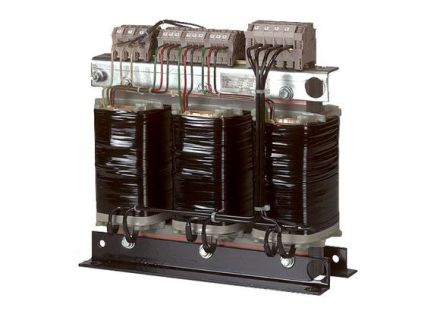

Eaton DTZ0,25 (/) * Three-phase control isolation safety transformer, 914801

In stock

SKU: 475229

Price on request

€258.47

€0

Overview

Three-phase control transformer designed according to 0550, 0550 Part 1, IEC/EN 61558-2-2, VDE 0570 Part 2-2 as a safety transformer 0570 Part 2-6 and as an isolating transformer 0570 Part 2-4, UL 506, CSA 22.2 No.66, OVE. Nominal input voltage selectable from 50-950V +- 5%, nominal output voltage selectable from 18.5 - 1000 Nominal power 0.25 kVA (*/*) = placeholder for nominal input voltage / nominal output voltage

Property	Value
Designed as a safety transformer:	yes
Designed as an economy transformer:	no
Designed as an isolating transformer:	yes
Rated power:	250 VA
Width:	155 mm
Height:	154 mm
Insulation class according to IEC 85:	B
Short-circuit proof:	no
Primary voltage 1:	50 to 950 V
Primary voltage 2:	50 to 950 V
Primary voltage 3:	50 to 950 V
Primary voltage 4:	50 to 950 V
Primary voltage 5:	50 to 950 V
Primary voltage 6:	50 to 950 V
Relative short-circuit voltage uk:	8.5 %
Circuit type:	other
Secondary voltage 1:	18.5 to 1000 V
Secondary voltage 2:	18.5 to 1000 V
Secondary voltage 3:	18.5 to 1000 V
Secondary voltage 4:	18.5 to 1000 V
Secondary voltage 5:	18.5 to 1000 V
Secondary voltage 6:	18.5 to 1000 V
Depth:	77 mm
Protection class (IP):	IP00
Conductor material:	Copper
Protection class (NEMA):	other
